H6903
- Layered construction
- Laminated, colour surface print
- Low profile
- 960mu thick
- Roll widths up to 1260mm
- Free samples
- 2-year guarantee
5S Optimisation
2 Year Warranty
Quality Line Marking
Approved Reseller
Enquiry
Enquiry
Samples
PermaRoute Overview
PermaRoute is the worlds only complete floor marking system. Developing PermaRoute over the years has resulted in a range that can encompass every section of floor marking for factories, warehouses, assembly areas and logistics bases.
PermaRoute has a layered construction. A PVC material, with a tough, protective, clear top laminate and a strong, permanent adhesive on the underside, results in a material that is impervious to all but the heaviest scuffs and scrapes. The top laminate protecting the PVC layer, either as a solid colour or with a surface print.

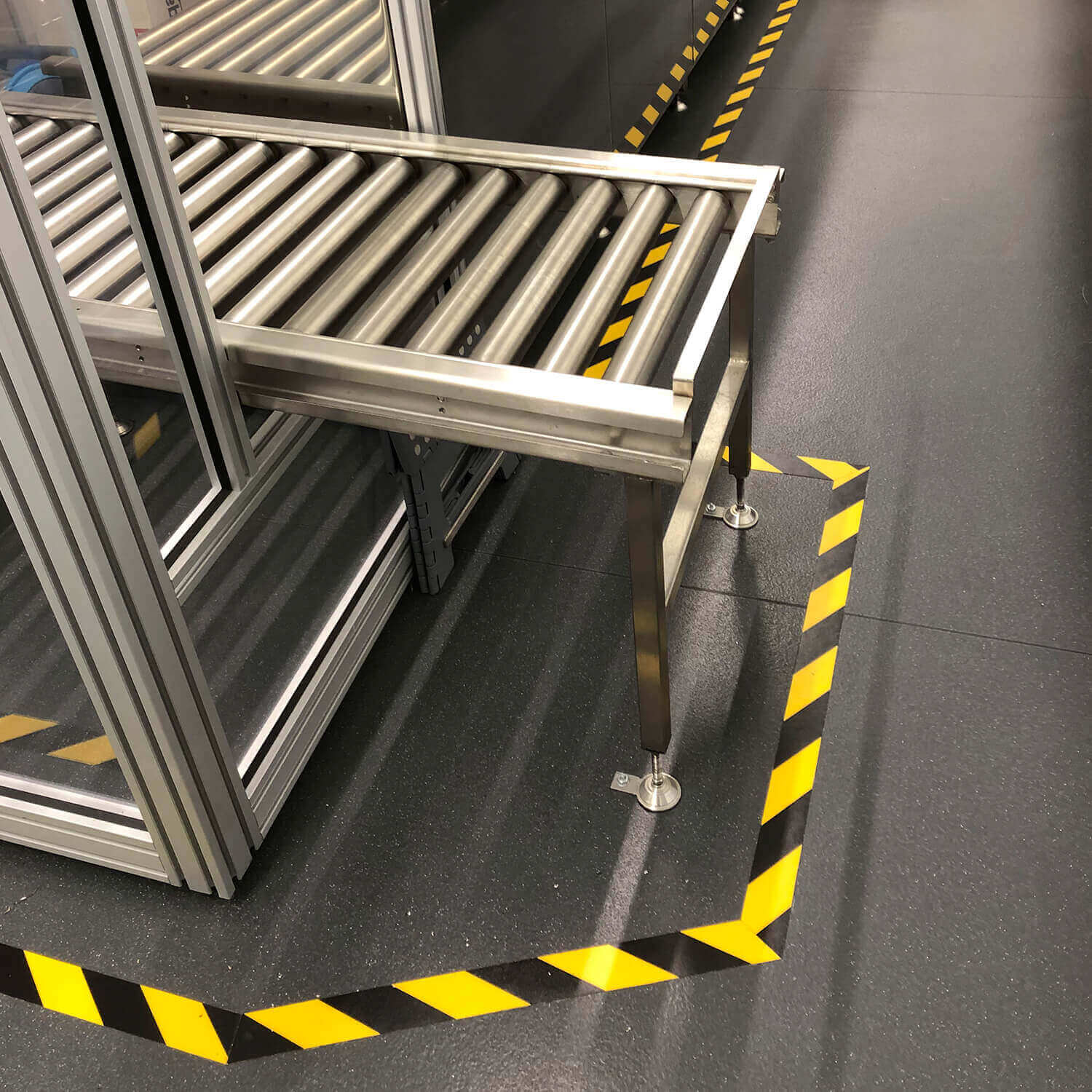

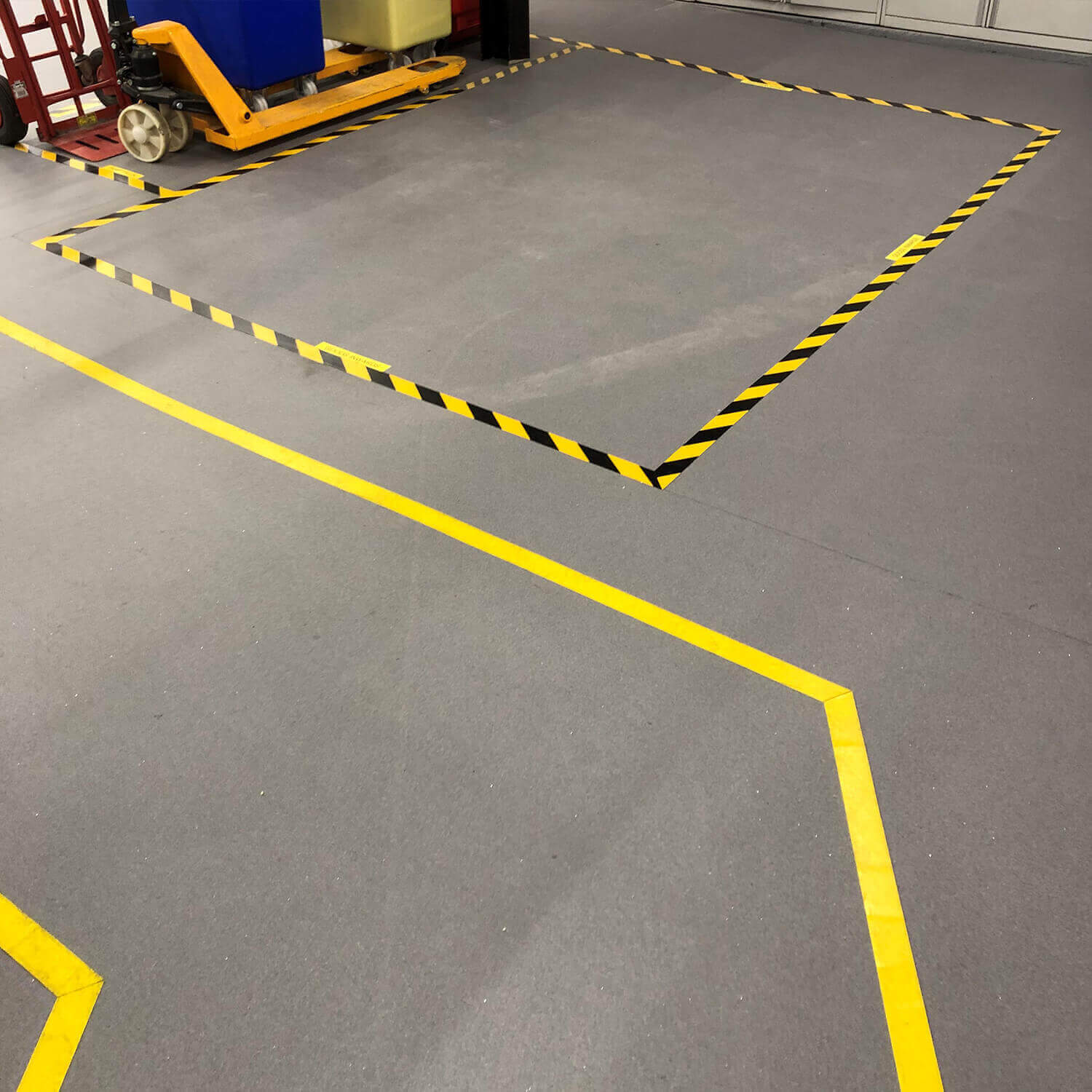

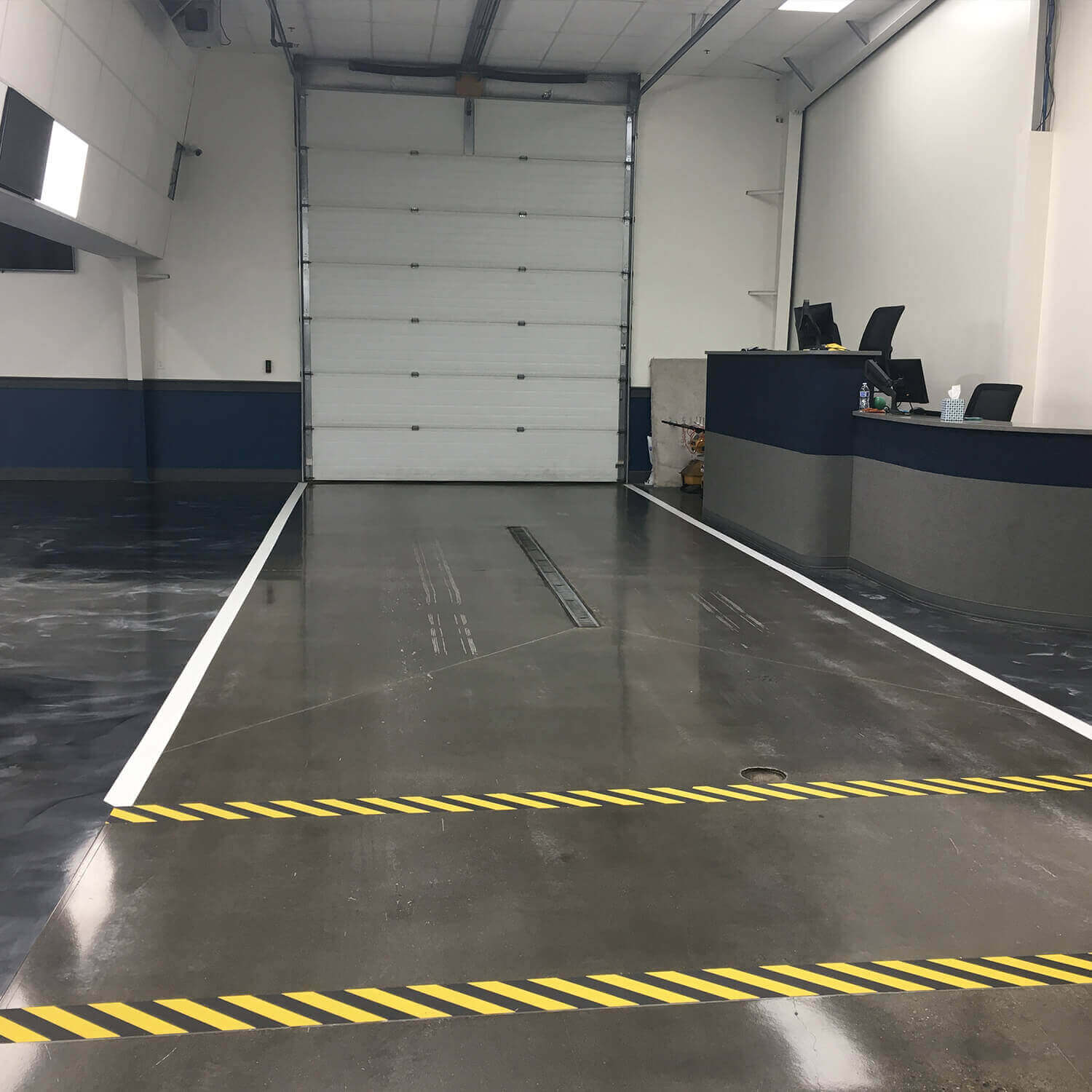

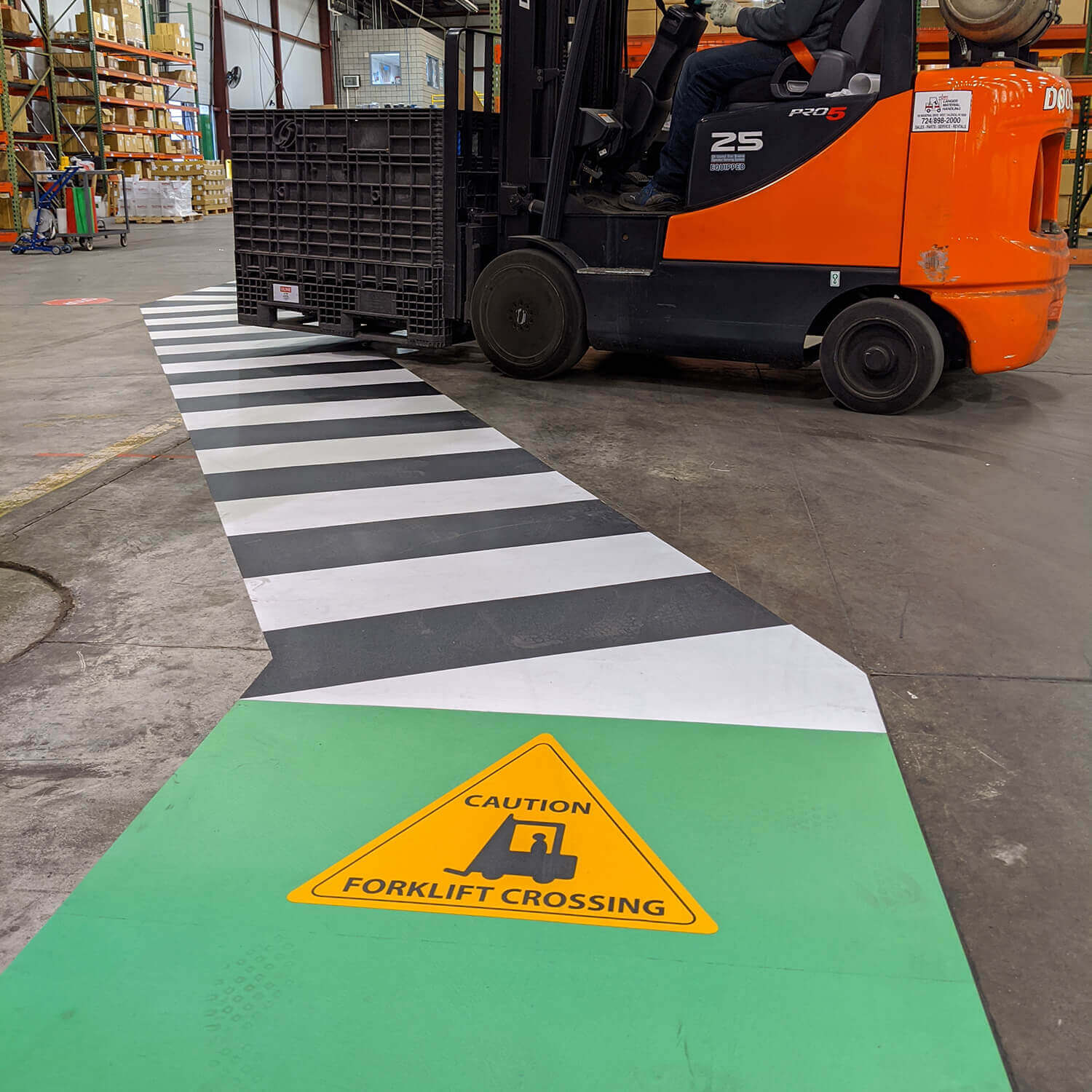

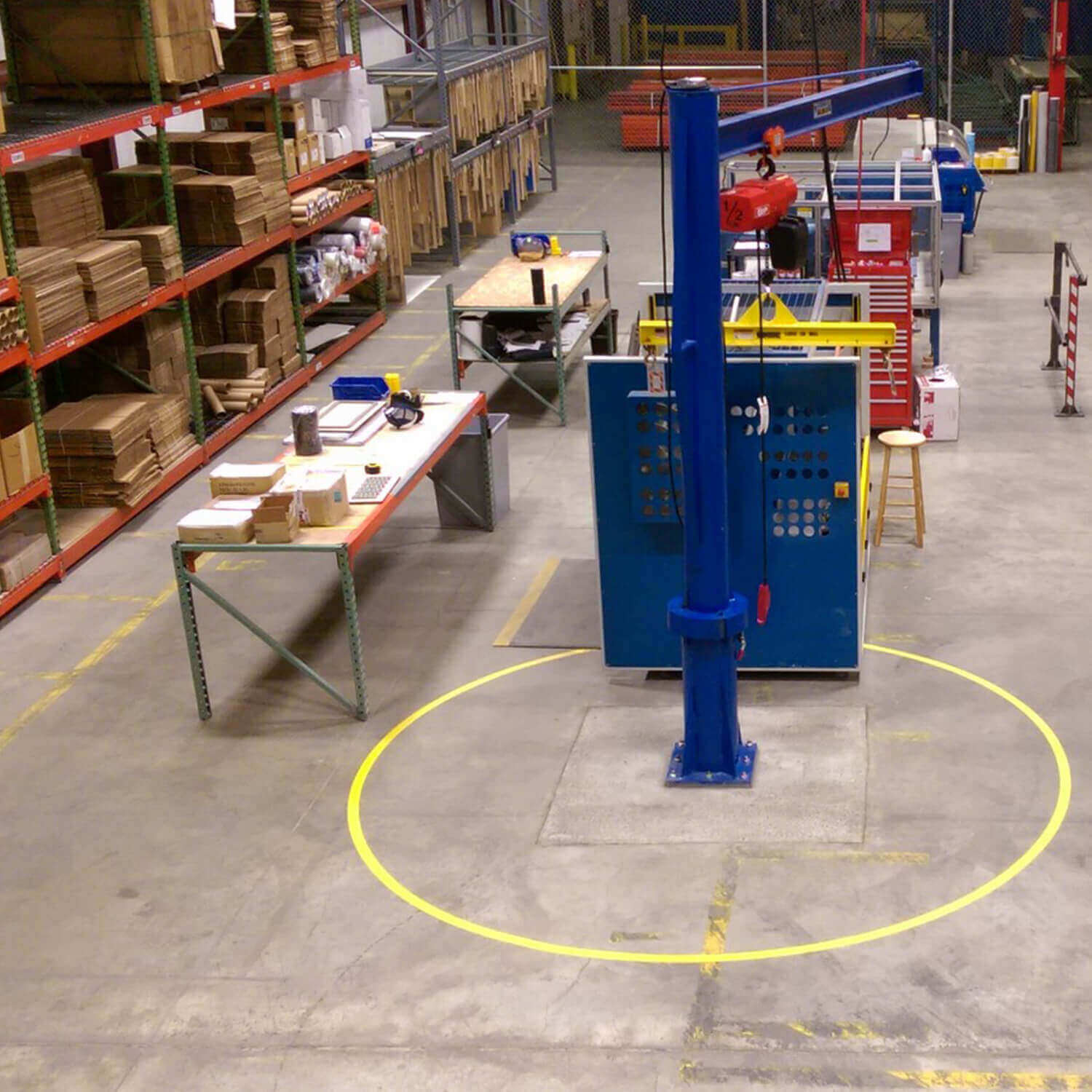

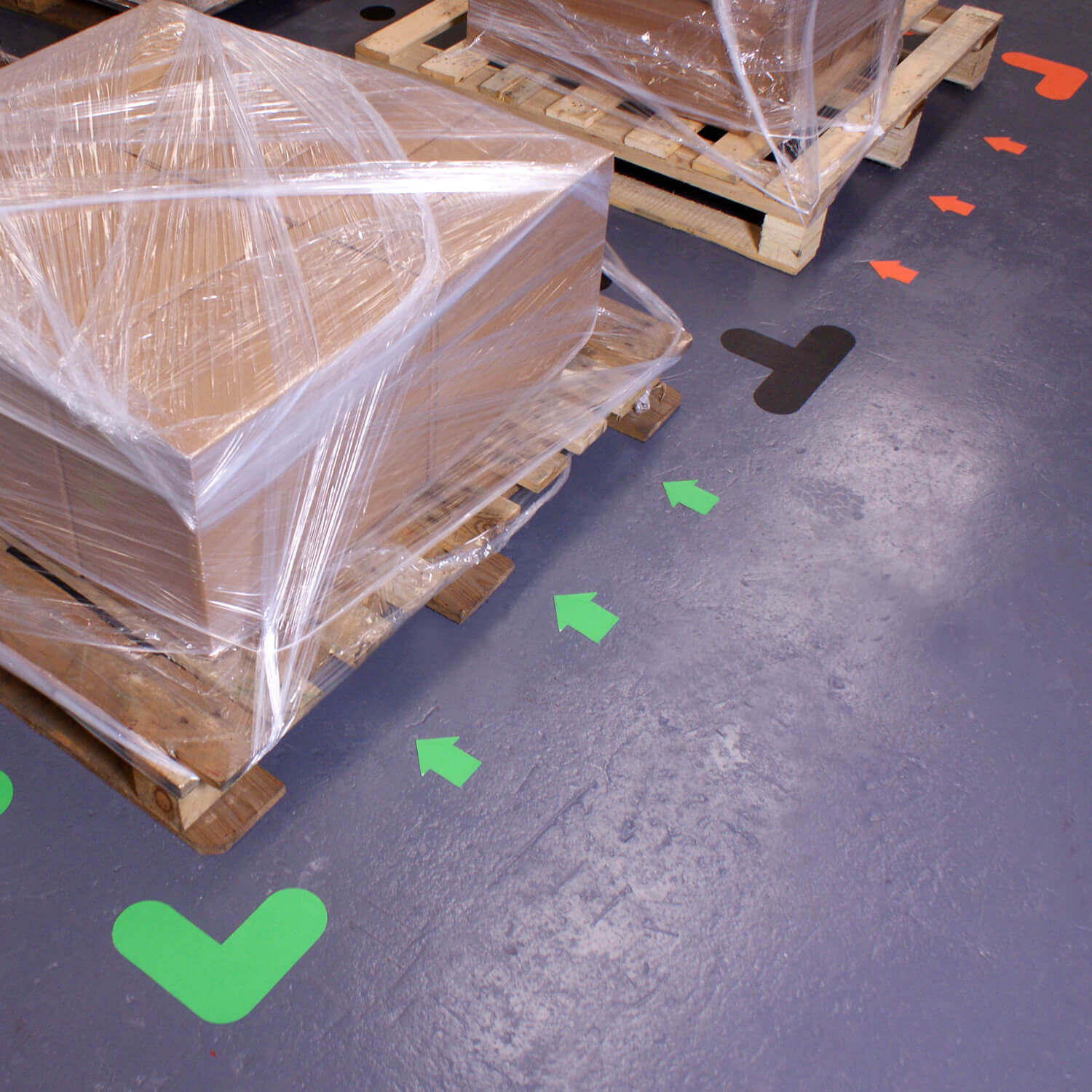

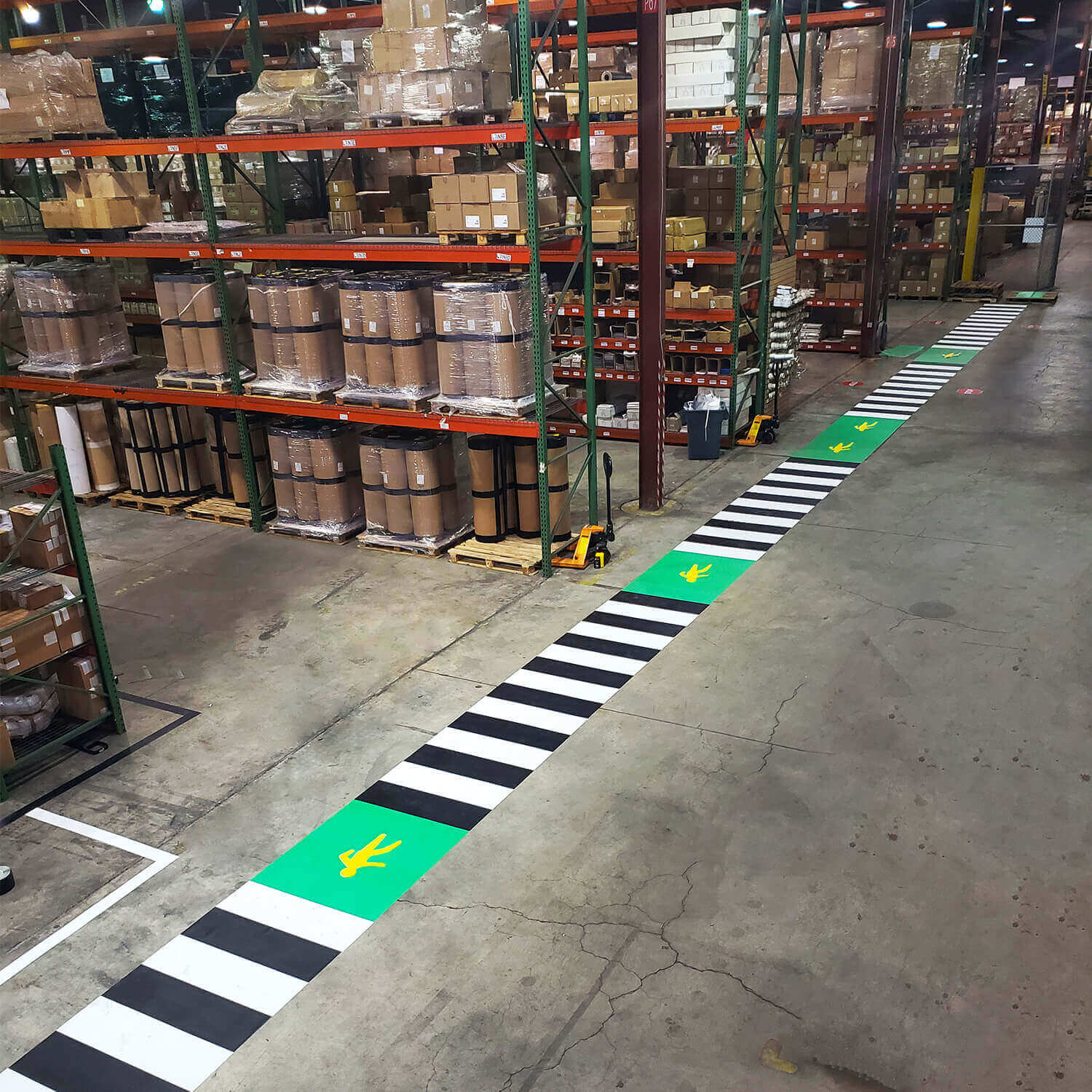

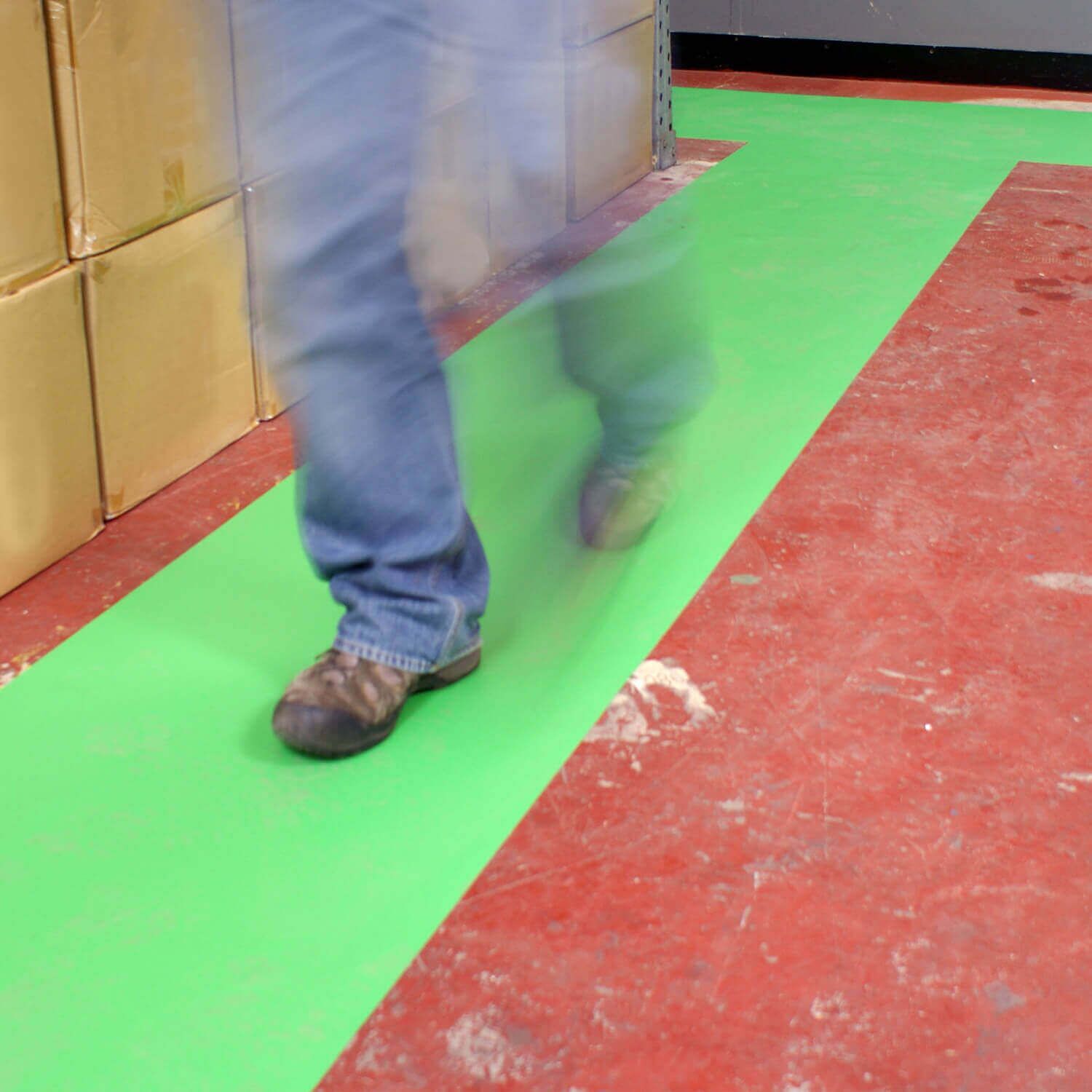

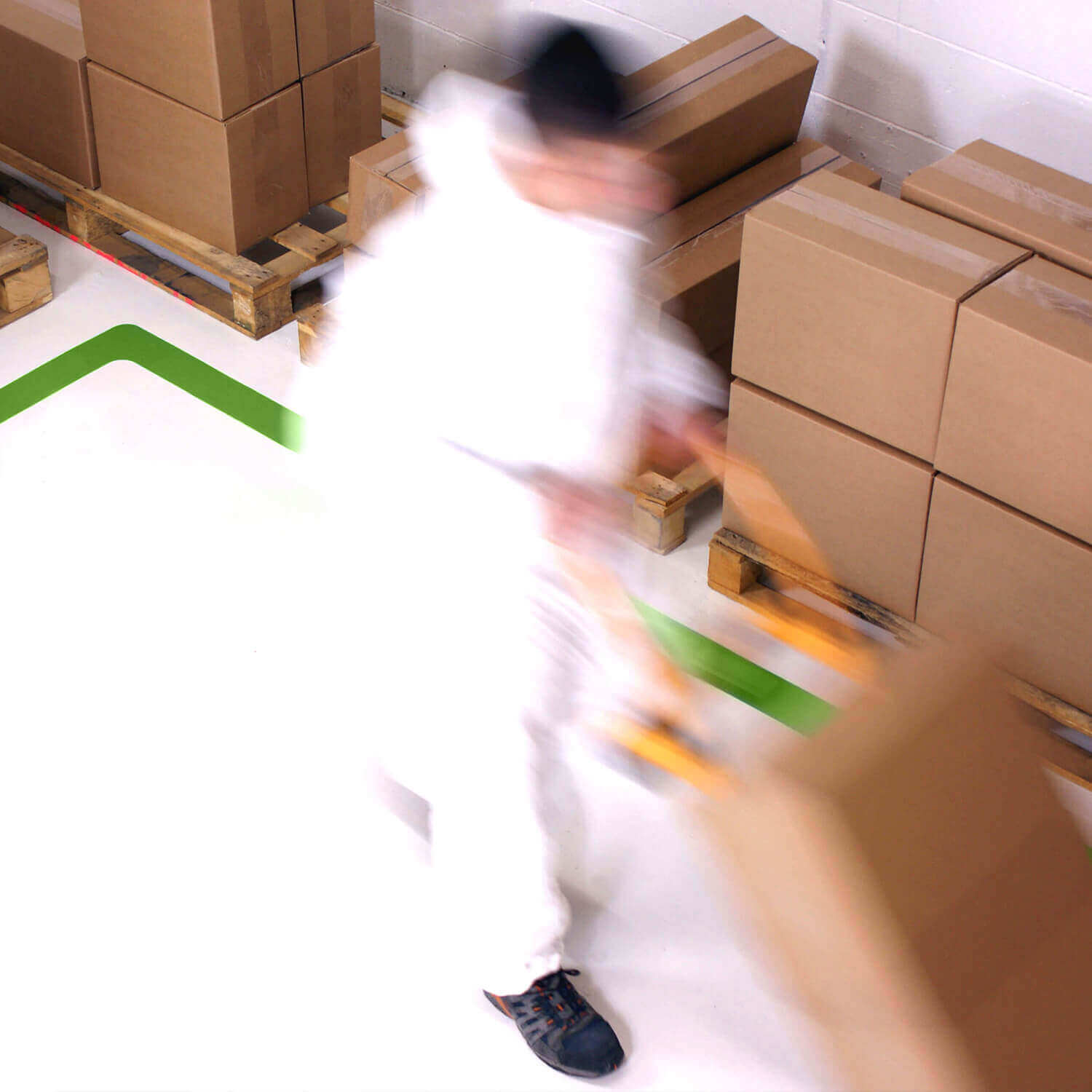

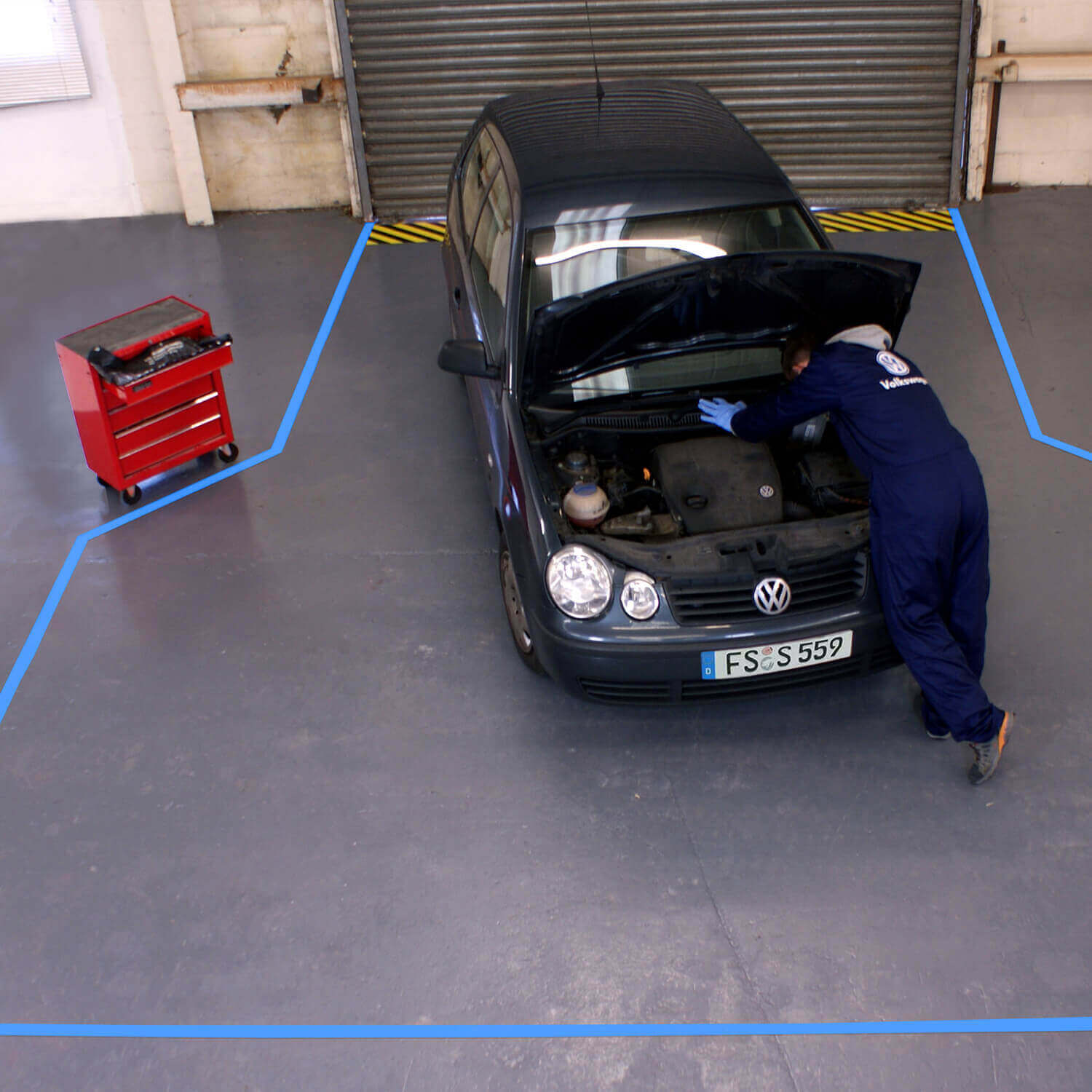

PermaRoute heavy duty line marking tape allows for the easy installation of clean lines in the workplace. Doing so helps to create walkways and routes for foot and vehicle traffic to perform tasks efficiently and safely as well as provide safe guidance through work areas. Designated, colour-coded storage areas can also be marked out to help optimise processes.
Application
Application of PermaRoute is easy with a clean, dry surfaces the only preparation required before application. Peeling back the liner and sticking down is all that is required and once applied, the area is ready for use again. This results in minimal downtime, something that is not the case with resin and painted lines. Combining with PermaRoute die-cuts creates an effective and visually appealing system within the workplace.
PermaRoute Sizes
PermaRoute is available for immediate dispatch in 50mm, 75mm and 100mm roll widths at a length of 30m and in a variety of die-cut shapes. View the colour options of PermaRoute within the colours tab.
Custom options are available dependent on order quantities.
Die-Cuts
We have a massive selection of various die-cut shapes to compliment the PermaRoute system. Combining die-cut shapes with the PermaRoute lines allows you to create a system that is perfect for your needs.
PermaRoute 2-Year Warranty
The Heskins warranty for PermaRoute is conditionally warranted for 2 years from product purchase. Warranty claims are only limited to the replacement of PermaRoute. The warranty does not cover items being dragged, pushed or scraped across such as pallets or transit skids.
If you would like to request samples, please complete the PermaRoute sample request form.
To enquire further, or place an order, you can contact our sales team via phone or live chat. Alternatively, complete the Make an Enquiry form above and we will get back to you as soon as possible.
VIDEOS
Selling Points Here
Cutting etc.
Cutting etc.
Cutting etc.
PermaStripe Shape Markers
Please click on the images to view the Dimensions.
Shapes (Click images to view dimensions)
L
ZN0027 – 200mm x 200mm

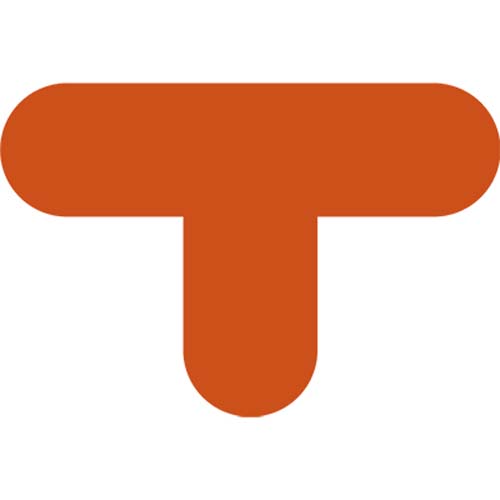

T
ZN0028 – 300mm x 200mm

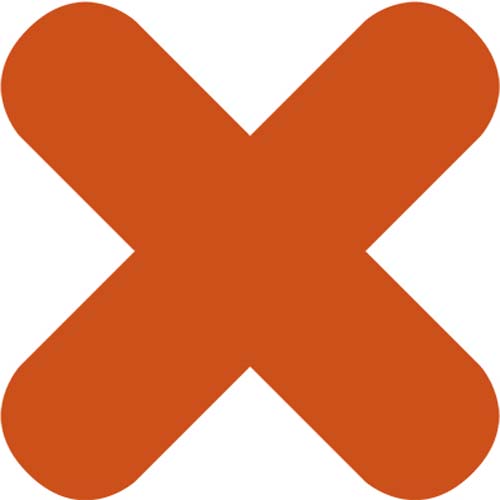

X
ZN0029 – 300mm x 300mm

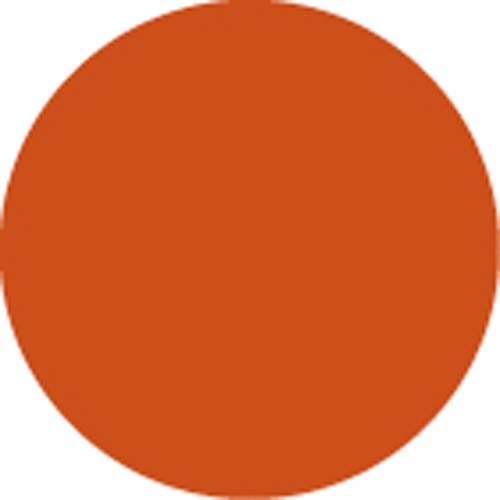

Dot – 50mm Ø
ZN0035

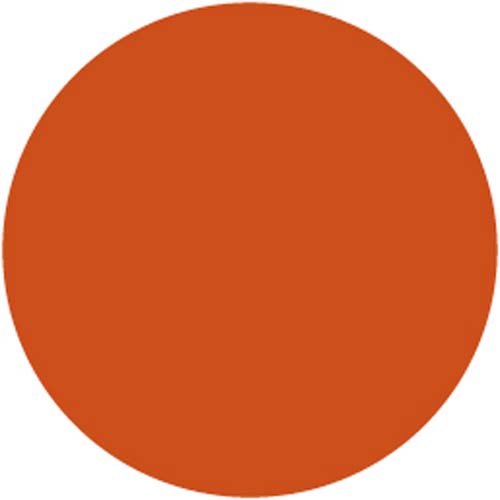

Dot – 90mm Ø
ZN0034
Dot – 100mm Ø
ZN0023

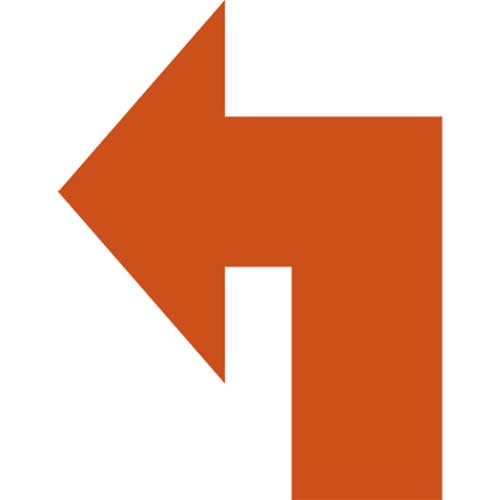

Arrow (Left or Right)
ZN0344 – 300mm x 230mm

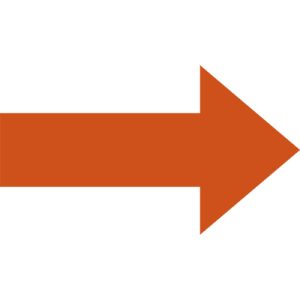

Arrow
ZN0020 – 100mm x 200mm
Small Arrow
ZN0009 – 100mm x 65mm

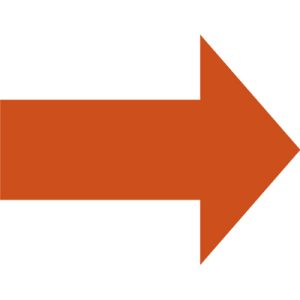

Large Arrow
ZN0012 – 300mm x 230mm

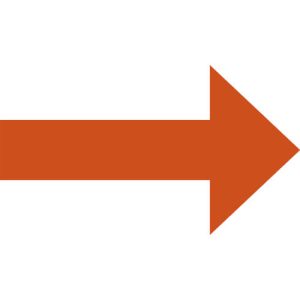

Extra Large Arrow
ZN0333 – 1000mm x 565mm
Short Arrow
ZN0050 – 90mm

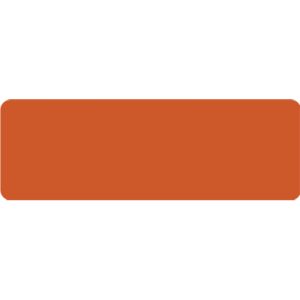

Line Block
ZN0021 – 150mm x 50mm

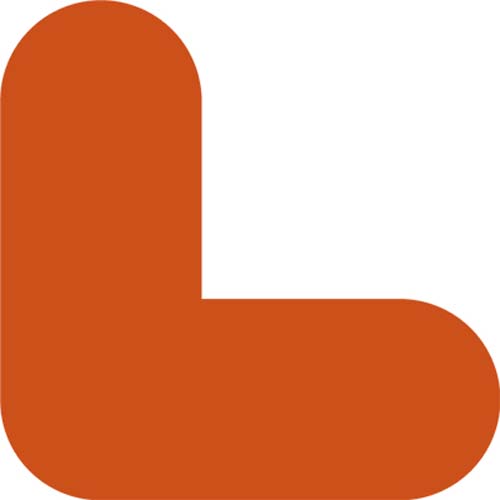

L-Shape
ZN0024 – 100mm x 100mm

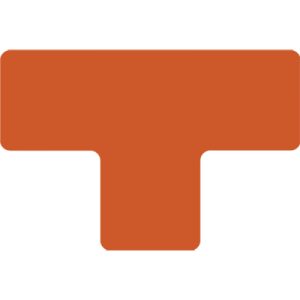

T-Shape
ZN0129 – 100mm x 150mm

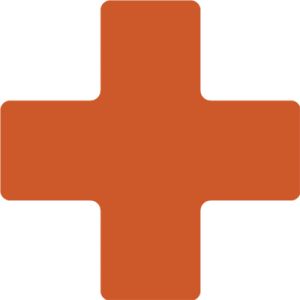

X-Shape
ZN0022 – 150mm x 150mm
Feet (Click images to view dimensions)

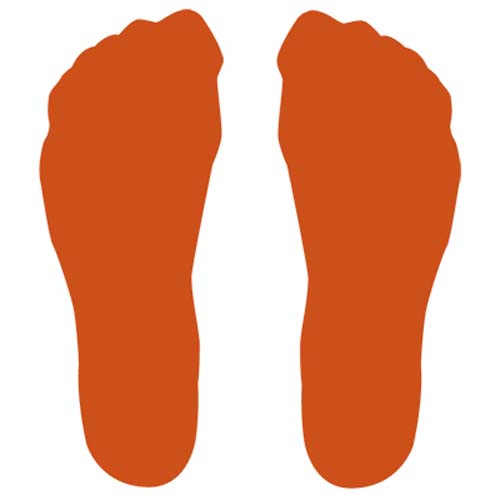

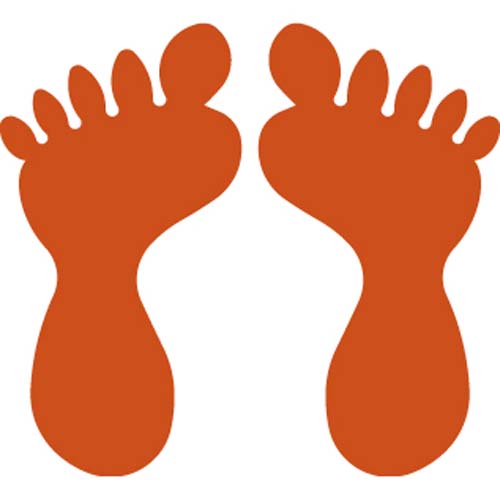

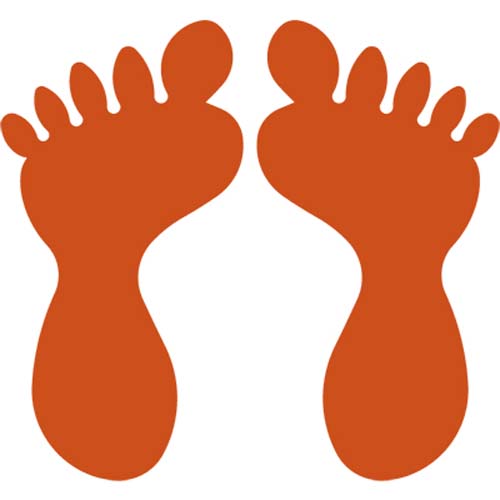

Feet
ZN0201- 280mm x 105mm
Feet
ZN0010 – 57mm x 104mm
Feet
ZN0011 – 120mm x 210mm

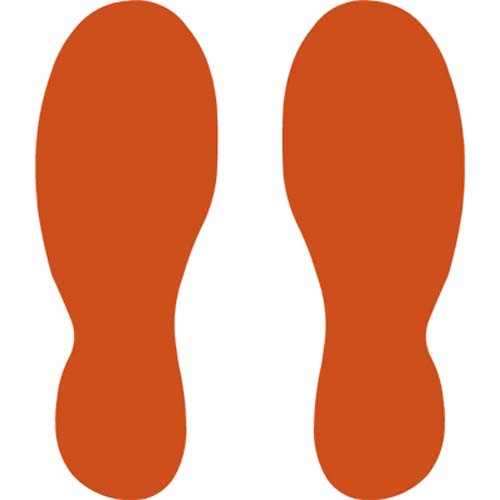

Shoes
ZN0013 – 240mm x 90mm

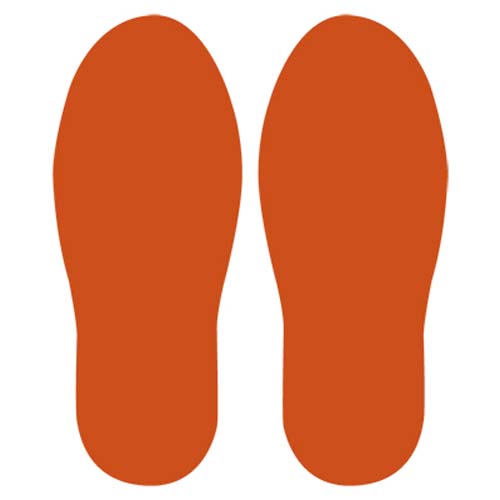

Boots
ZN0016 – 300mm x 120mm
Joins (Click images to view dimensions)

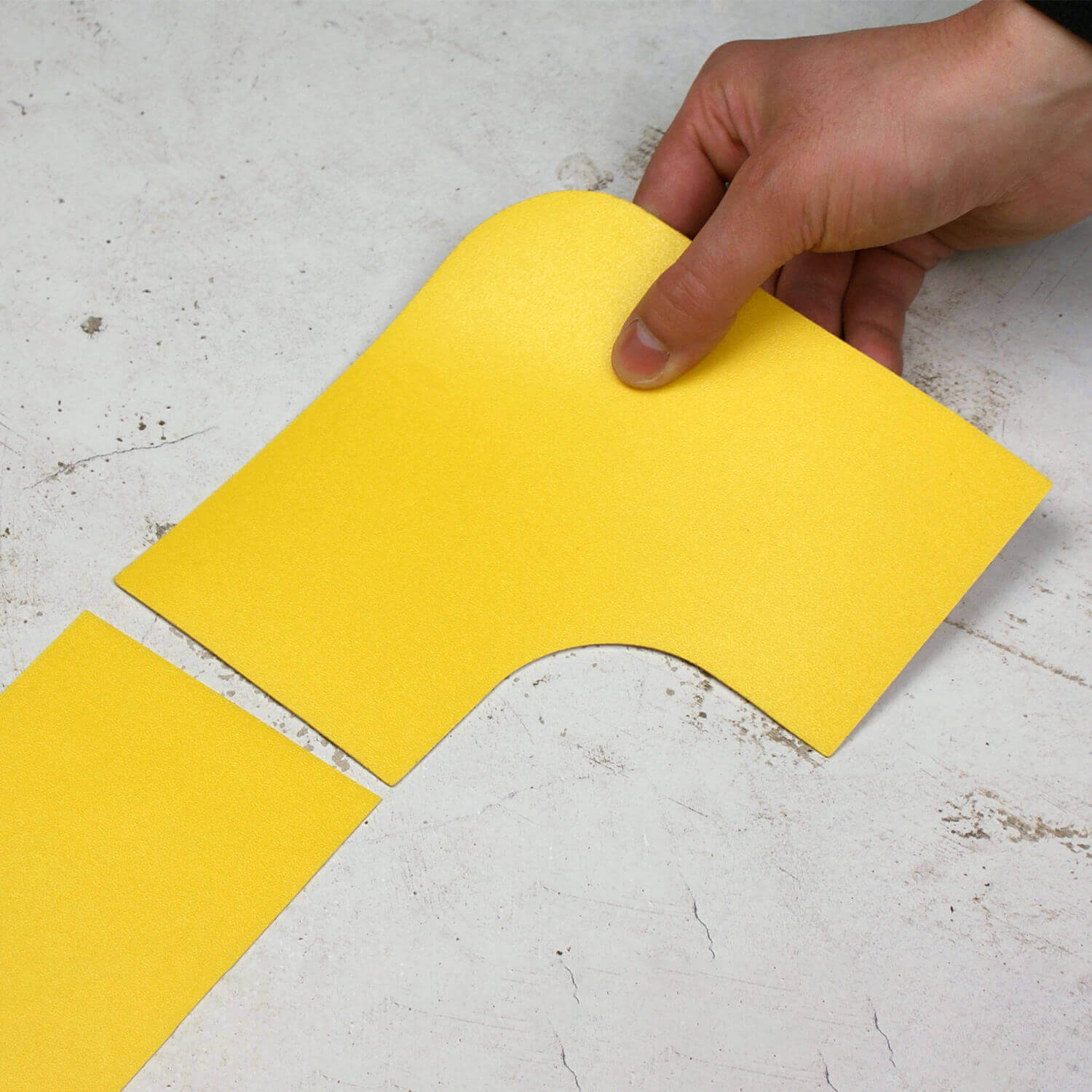

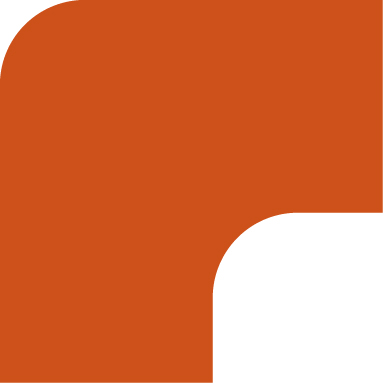

90° Corner
ZN0063 – To join 50mm rolls
90° Corner
ZN0054 – To join 75mm rolls
90° Corner
ZN0202 – To join 100mm rolls
45° Corner
ZN0214 – To join 50mm rolls
45° Corner
ZN0215 – To join 75mm rolls
45° Corner
ZN0216 – To join 100mm rolls

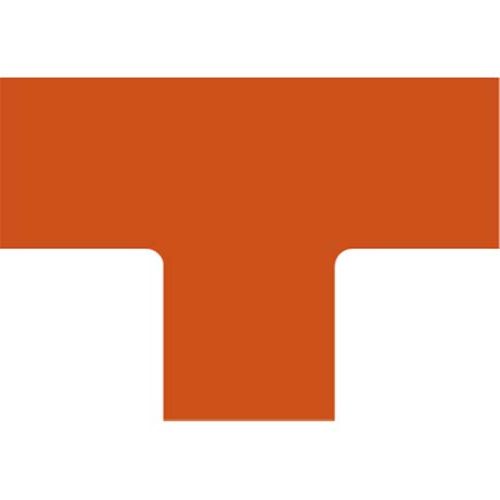

T-Junction
ZN0055 – To join 50mm rolls
T-Junction
ZN0217 – To join 75mm rolls
T-Junction
ZN0339 – To join 100mm rolls

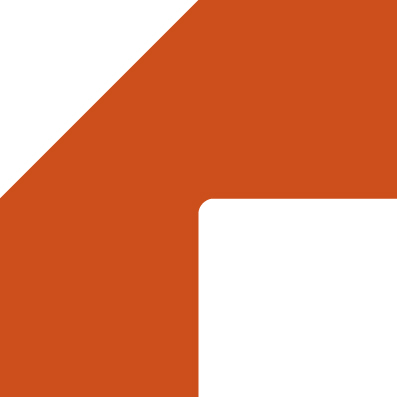

Bridge
ZN0061 – To join 50mm rolls
Bridge
ZN0062 – To Join 75mm Rolls
Bridge
ZN0340 – To join 100mm rolls

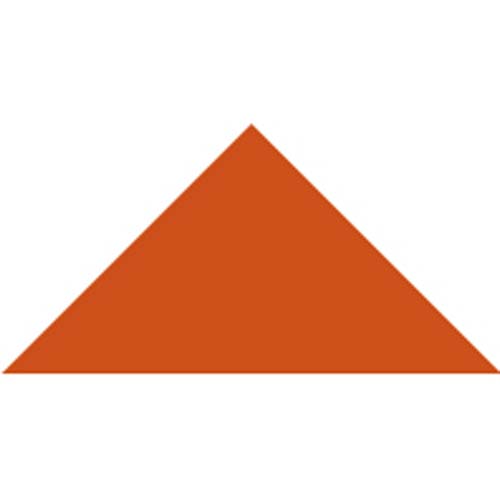

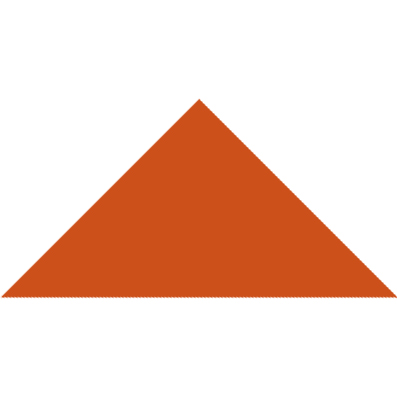

End Cap
ZN0157 – To join 50mm rolls
End Cap
ZN0341 – To join 75mm rolls
End Cap
ZN0342 – To join 100mm rolls
Numbers (Click images to view dimensions)

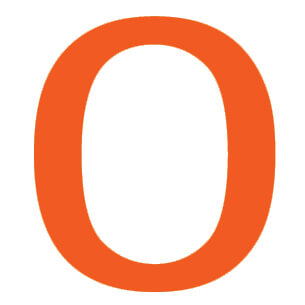

0
ZN0083– 95mm
ZN0093– 180mm
ZN0093– 300mm

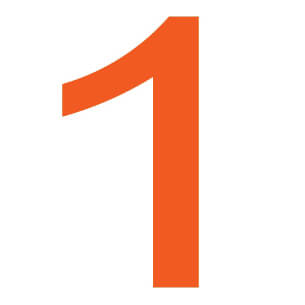

1
ZN0084– 95mm
ZN0094– 180mm
ZN0103– 300mm

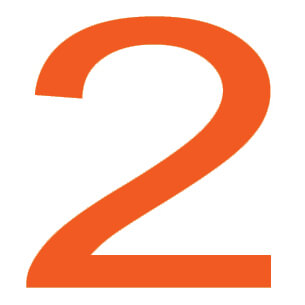

2
ZN0085– 95mm
ZN0095– 180mm
ZN0105– 300mm

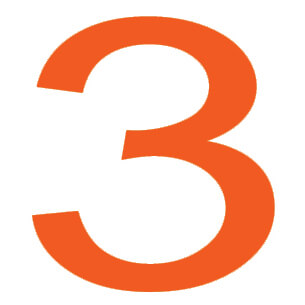

3
ZN0083– 95mm
ZN0096– 180mm
ZN0103– 300mm

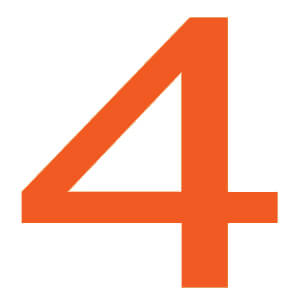

4
ZN0087– 95mm
ZN0097– 180mm
ZN0107– 300mm

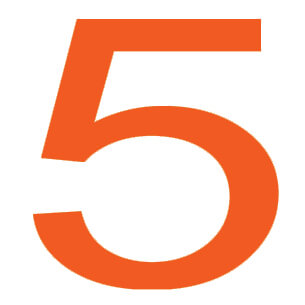

5
ZN0088– 95mm
ZN0098– 180mm
ZN0108– 300mm

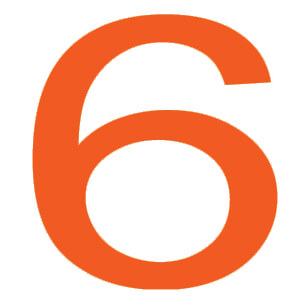

6
ZN0089– 95mm
ZN0099– 180mm
ZN0109– 300mm

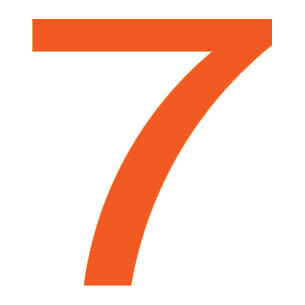

7
ZN0090– 95mm
ZN0100– 180mm
ZN0110– 300mm

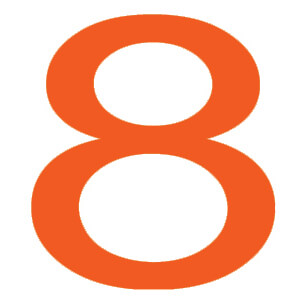

8
ZN0091– 95mm
ZN0101– 180mm
ZN0111– 300mm

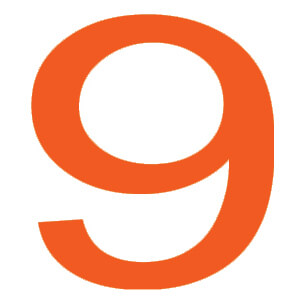

9
ZN0092– 95mm
ZN0102– 180mm
ZN0112– 300mm
Letters (Click images to view dimensions)

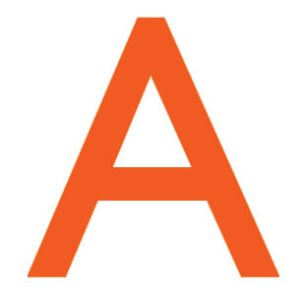

A
ZN0229– 95mm
ZN0255– 180mm
B
ZN0230– 95mm
ZN0230– 180mm

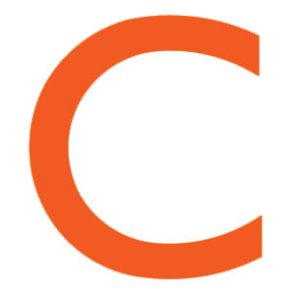

C
ZN0231– 95mm
ZN0257– 180mm

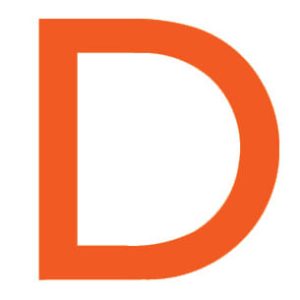

D
ZN0232– 95mm
ZN0258– 180mm

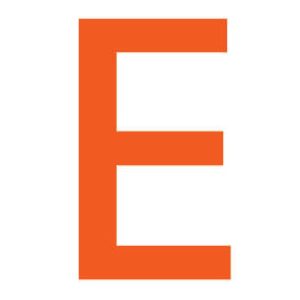

E
ZN0233– 95mm
ZN0259– 180mm

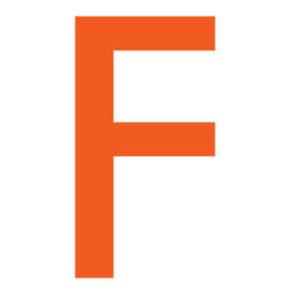

F
ZN0234– 95mm
ZN0260– 180mm

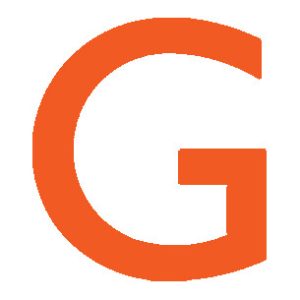

G
ZN0235– 95mm
ZN0261 – 180mm

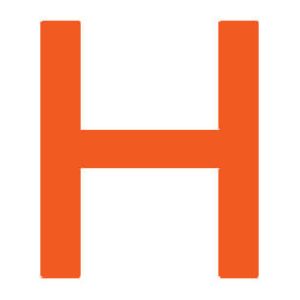

H
ZN0236– 95mm
ZN0262– 180mm

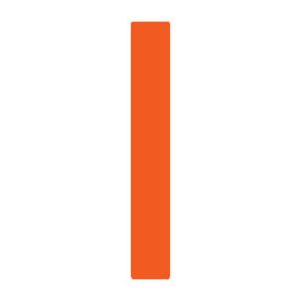

I
ZN0237– 95mm
ZN0263– 180mm

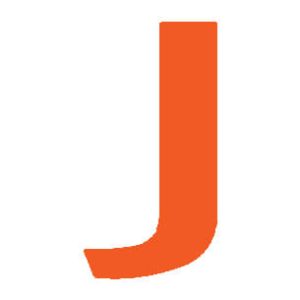

J
ZN0238– 95mm
ZN0264– 180mm

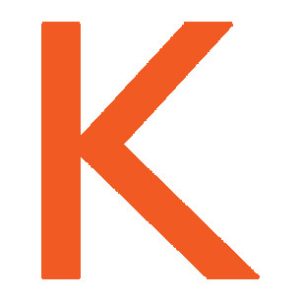

K
ZN0239– 95mm
ZN0265– 180mm

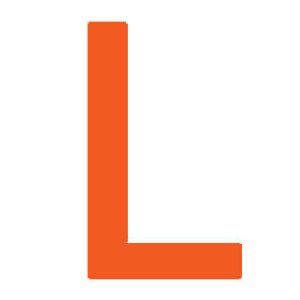

L
ZN0240– 95mm
ZN0266– 180mm

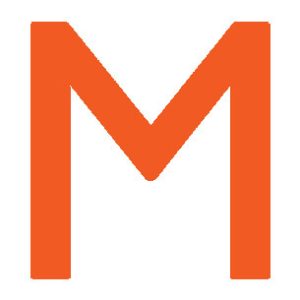

M
ZN0241– 95mm
ZN0267– 180mm

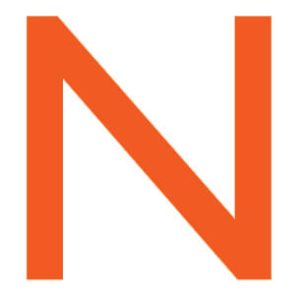

N
ZN0242– 95mm
ZN0268– 180mm

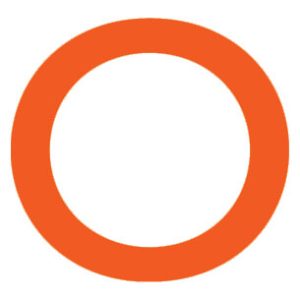

O
ZN0243– 95mm
ZN0269– 180mm

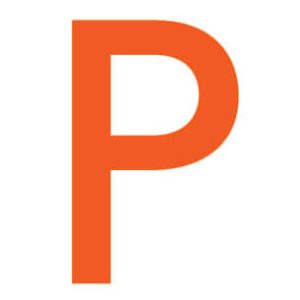

P
ZN0244– 95mm
ZN0270– 180mm

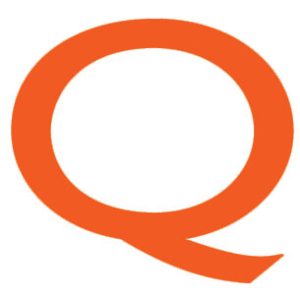

Q
ZN0245 – 95mm
ZN0271– 180mm

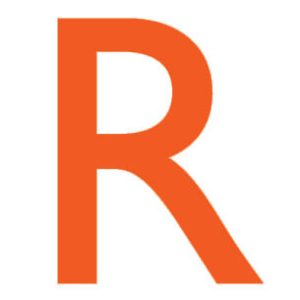

R
ZN0246– 95mm
ZN0272– 180mm

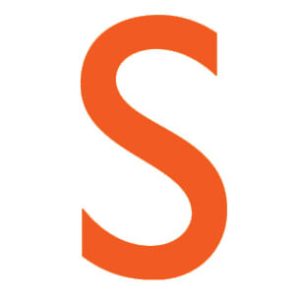

S
ZN0247– 95mm
ZN0273– 180mm

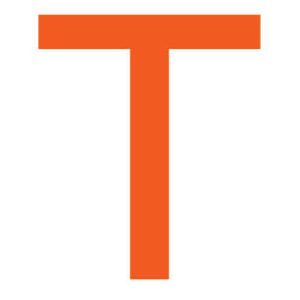

T
ZN0248– 95mm
ZN0274– 180mm

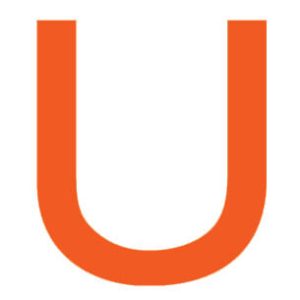

U
ZN0249– 95mm
ZN0275– 180mm

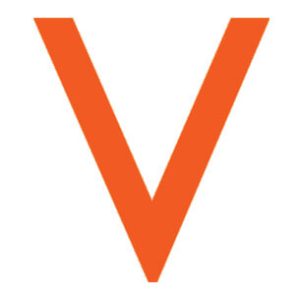

V
ZN0250– 95mm
ZN0276– 180mm

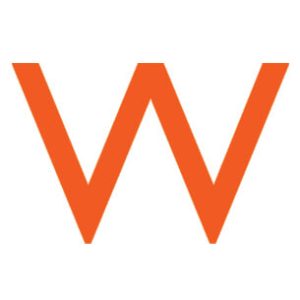

W
ZN0251– 95mm
ZN0277– 180mm

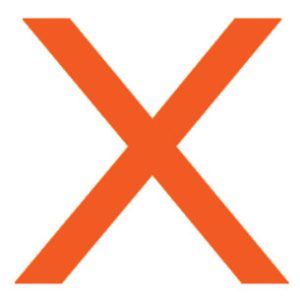

X
ZN0252– 95mm
ZN0278– 180mm

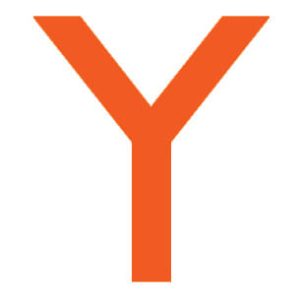

Y
ZN0253– 95mm
ZN0279– 180mm

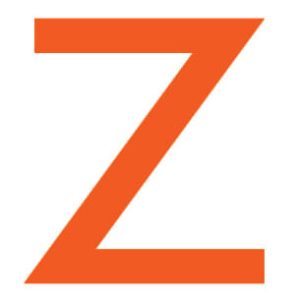

Z
ZN0254– 95mm
ZN0280– 180mm
Colours
H6903N
Pantone / RAL
Black 6 U / 9004
Black

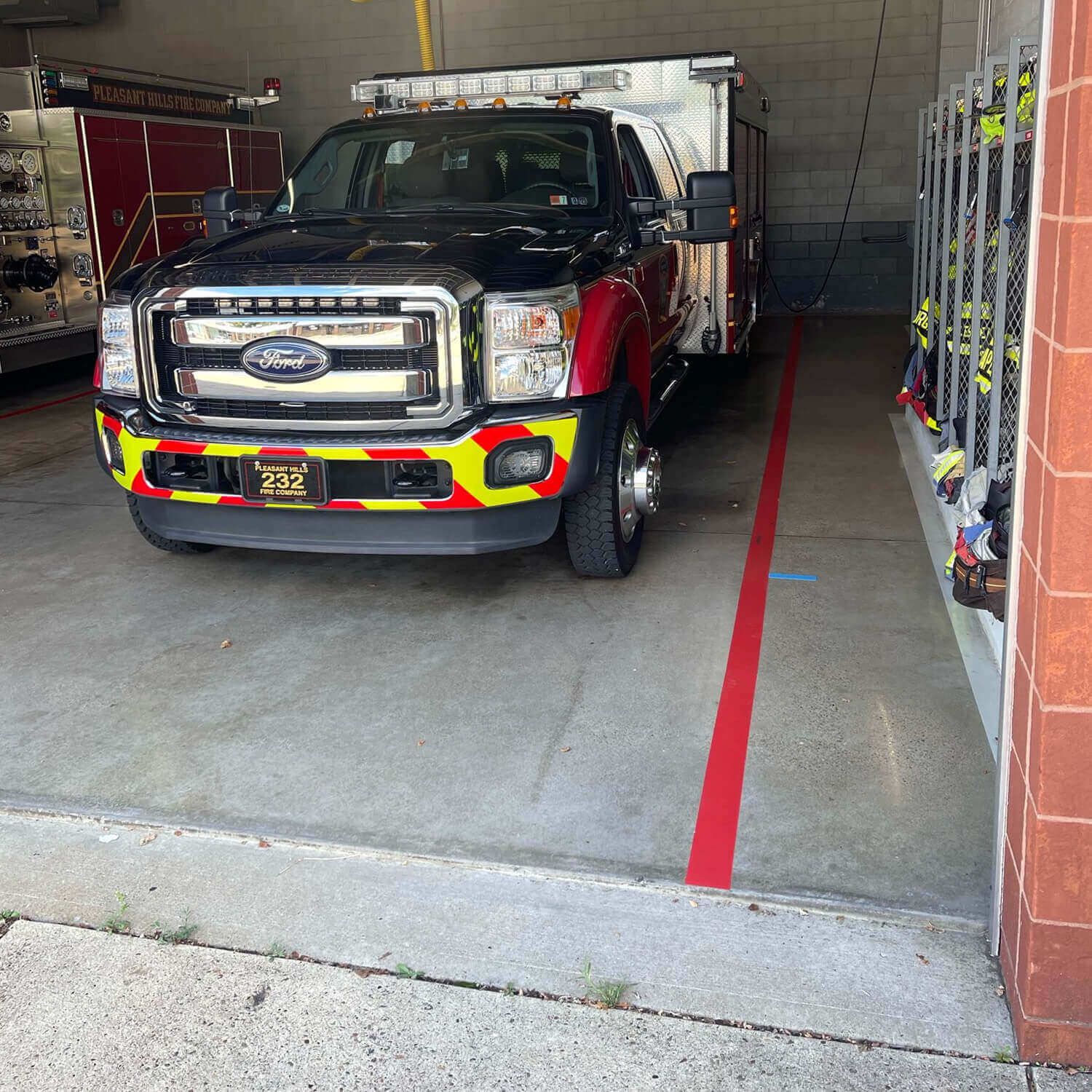

H6903R
Pantone / RAL
1795 U / 3020
Red

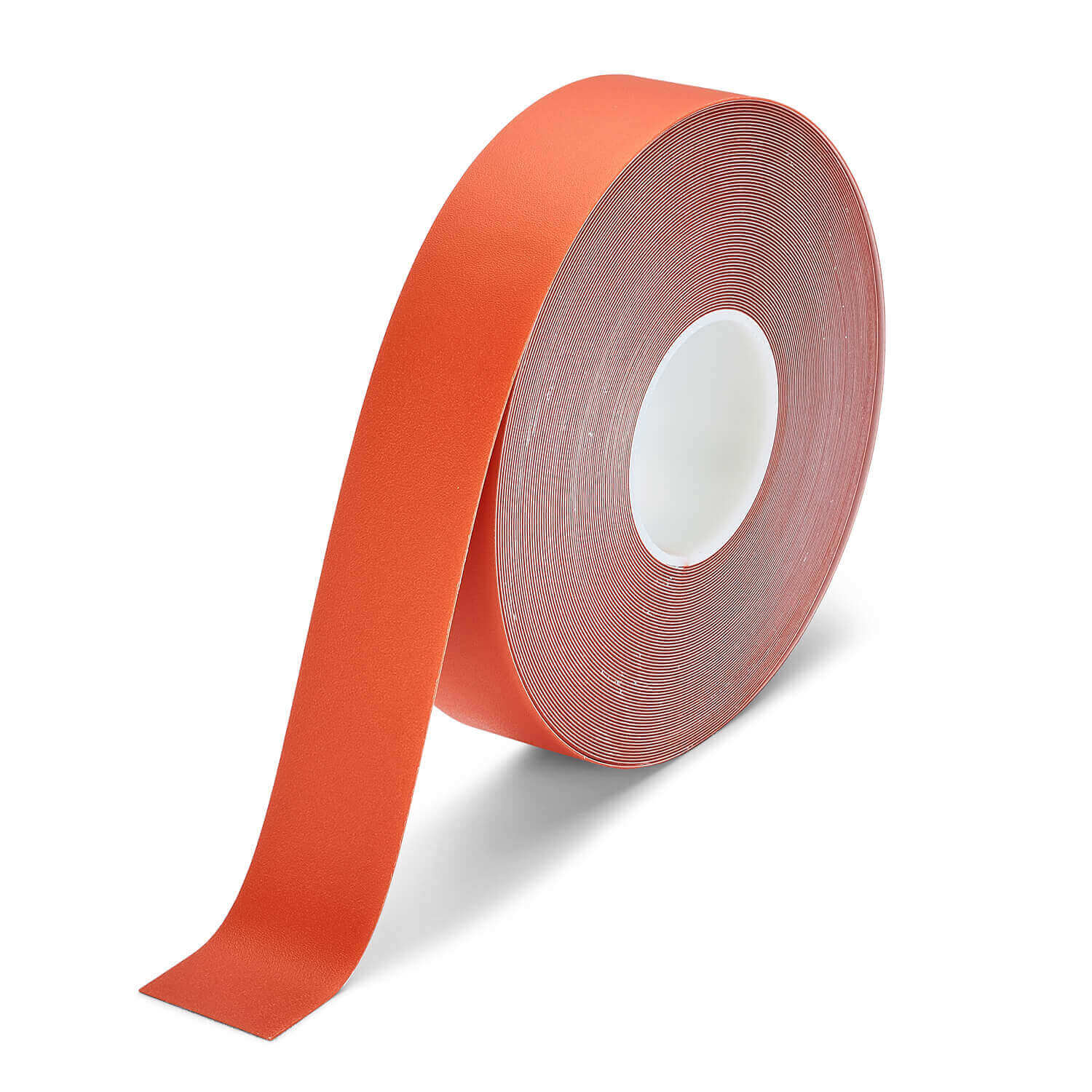

H6903O
Pantone / RAL
021 U / 2009
Orange
H6903Y
Pantone / RAL
114 U / 1018
Yellow
H6903F
Pantone / RAL
803 U / 1016
Fluorescent Yellow
H6903YNA
Pantone / RAL
137 U / 1003
Special Yellow
H6903V
Pantone / RAL
7488 U / 6018
Green
H6903B
Pantone / RAL
2985 U / 5012
Blue
H6901J
Pantone / RAL
2945 U / 5002
Dark Blue
H6903W
Pantone / RAL
7541 U / 9003
White

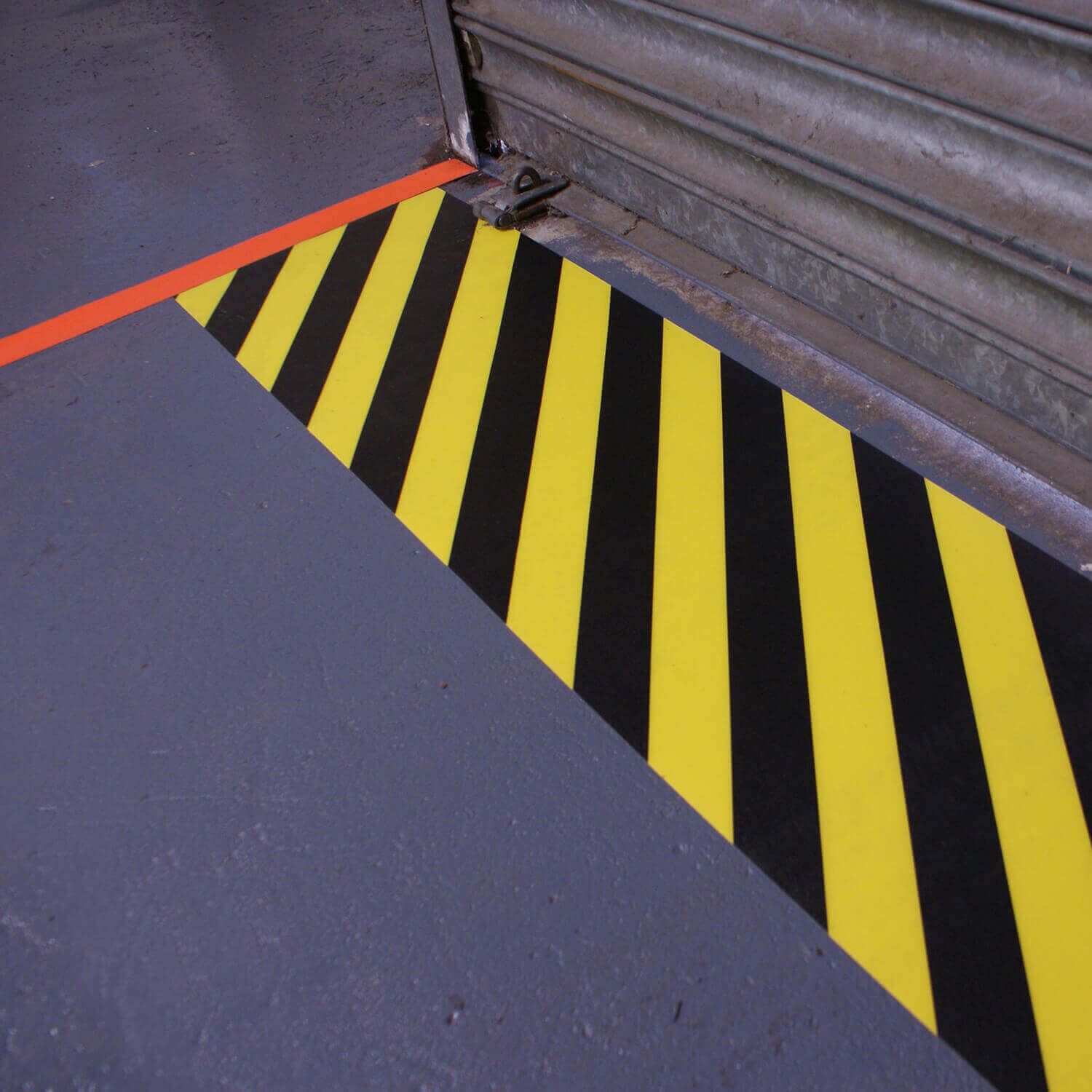

H6903D
Pantone / RAL
Black: Black 6 / 9004
Yellow: 1235 U / 1021
Black/Yellow
H6903A
Pantone / RAL
Red: 32 U / 3028
White: White / 9003
Red/White
H6903H
Pantone / RAL
Green: 356 U / 6002
White: White / 9010
Black/White
H6903E
Pantone / RAL
Black: Black 6 U / 9004
White: White / 9003
Black/White
H6903P
Pantone / RAL
Black: Black 6 U / 9004
Orange: 021 U / 2009
Black/White
