H6901
- Homogenous
- Bevelled Edges
- Easy to apply
- 1300mu thick
- Widths from 50mm to 100mm
- Free samples
- 3 Year Guarantee
5S Optimisation
3 Year Warranty
Quality Line Marking
Approved Reseller
Enquiry
Enquiry
Samples
PermaStripe Overview
PermaStripe is the worlds most effective, durable line marking system and can be used for warehouse walkway markings as an alternative to painted lines or resin. With PermaStripe industrial marking tape, you can create clearly defined routes for employees to perform duties and guests to pass through work areas safely and effectively.
Benefits
It’s an industrial-grade line marking tape, with a thickness of 1300mu. Its homogenous construction means that any scrapes won’t affect the colour marking, as it is present throughout the material.
Made of a durable PVC with an embossed surface and bevelled edges, PermaStripe line marking tape is easily applied to a clean, dry surface using it’s strong, permanent adhesive which coats the base from edge to edge.
Application
Installation for the whole PermaStrip line marking tape range is easy. Simply peel back the backing liner and stick down to a clean, dry surface. No detailed preparation beyond cleaning and drying the surface is required and once the application is complete, the area is ready immediately. This results in minimal downtimes, which is crucial for the workplace.

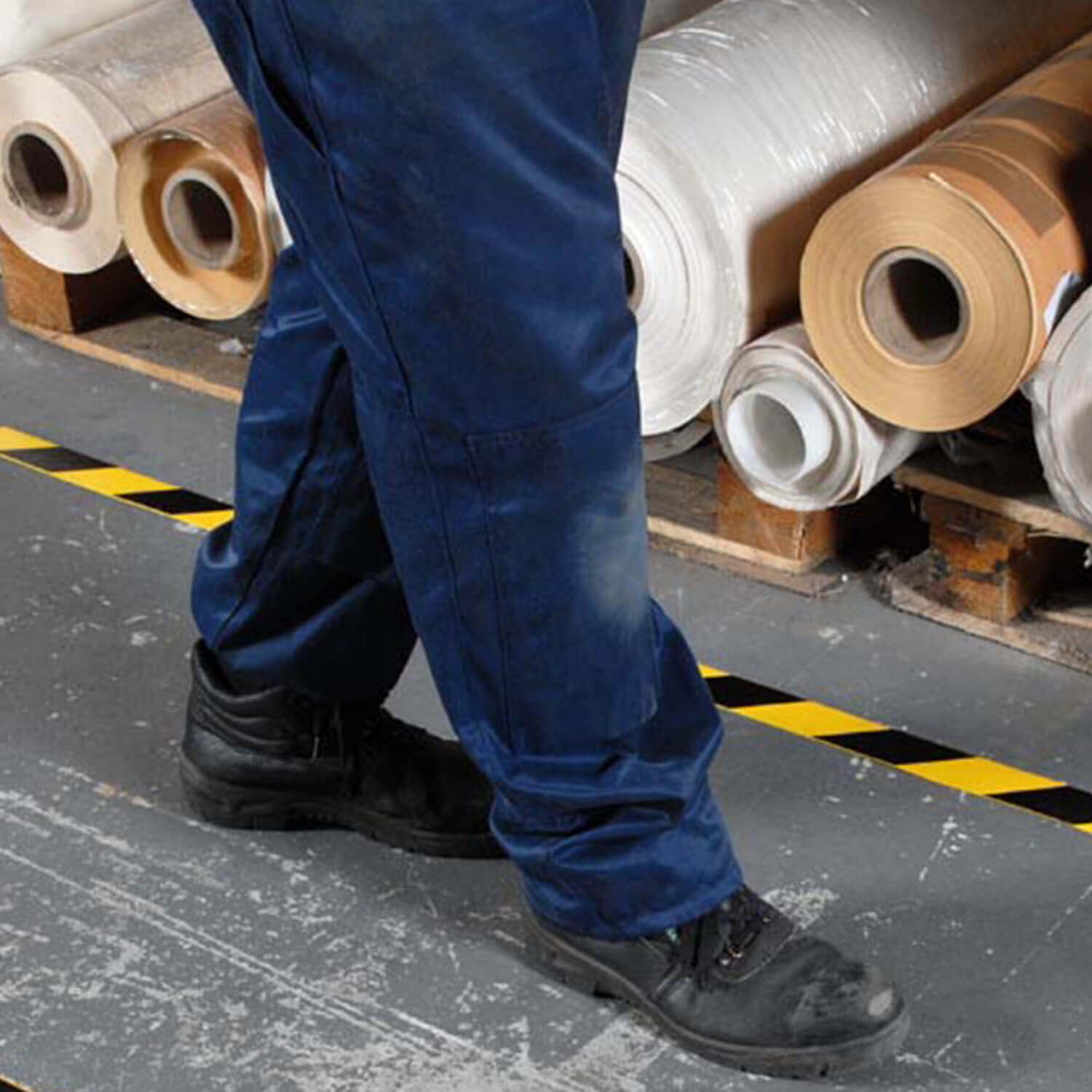

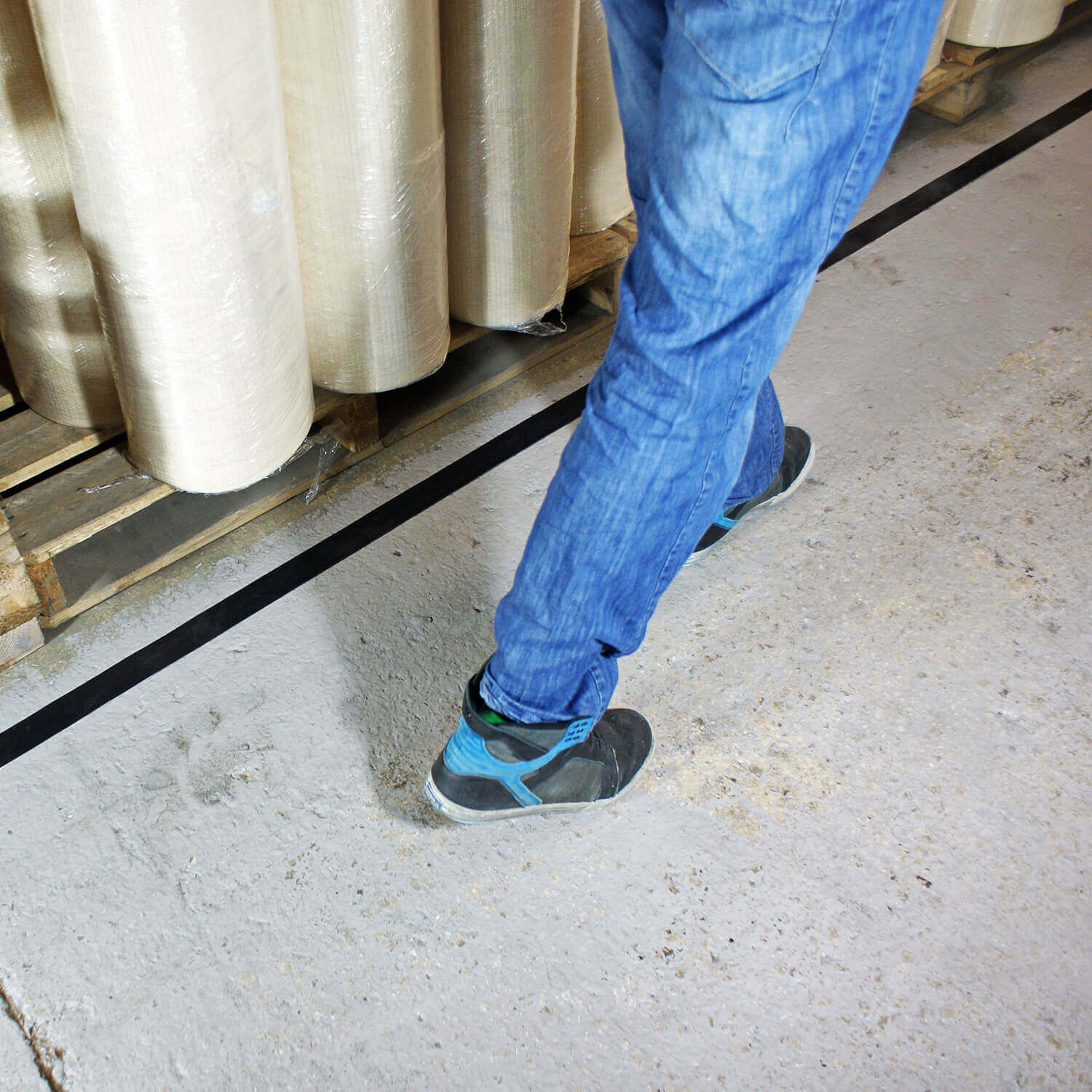

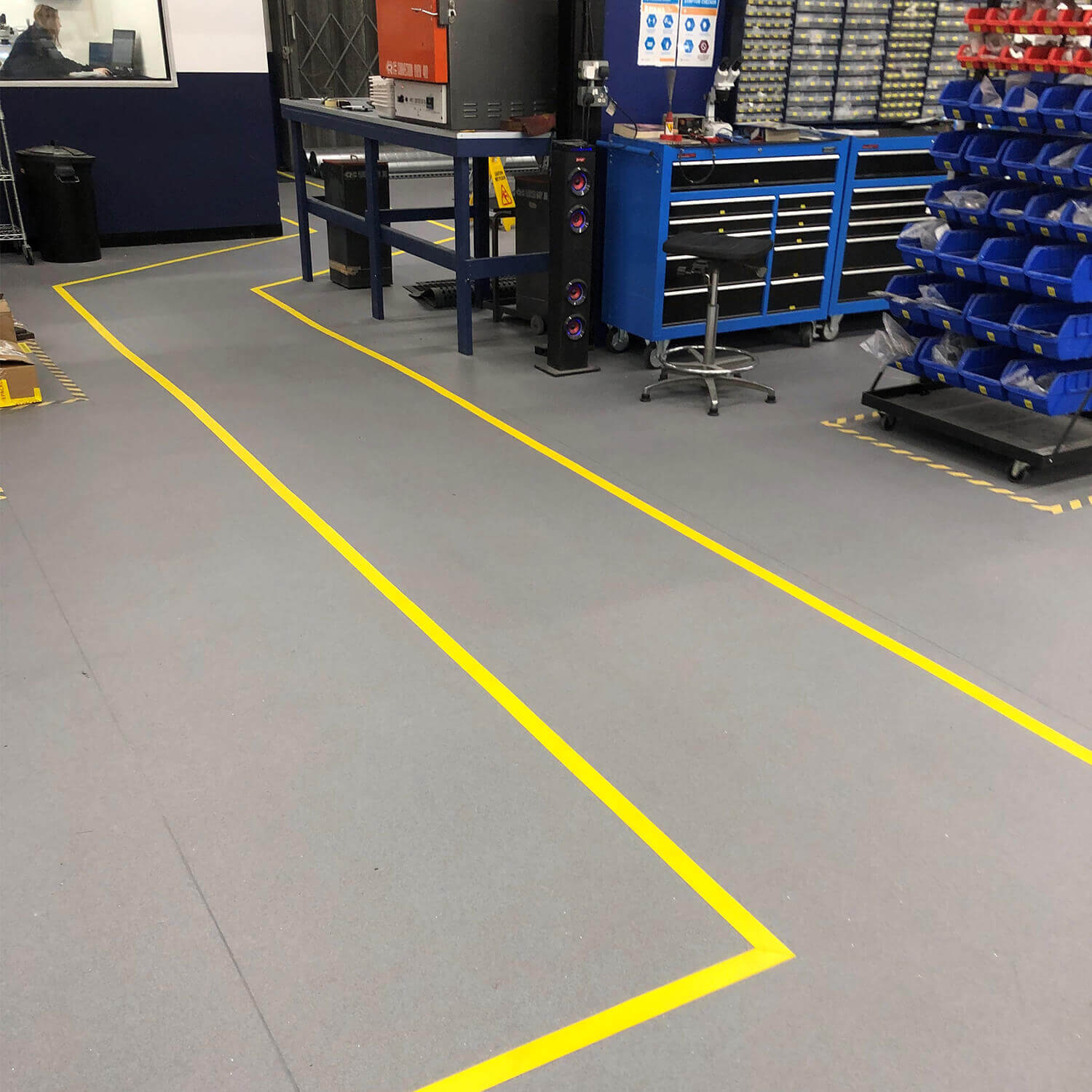

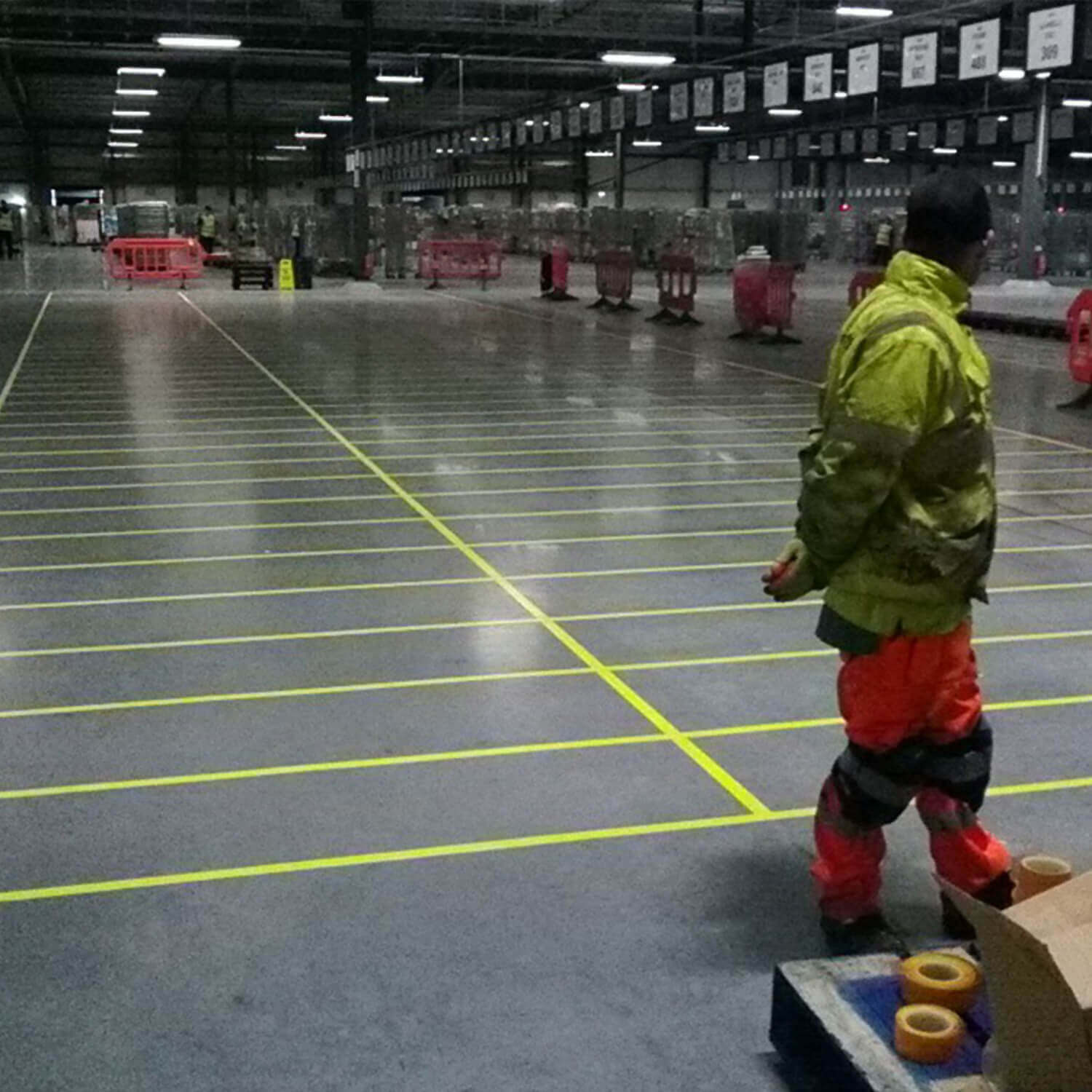

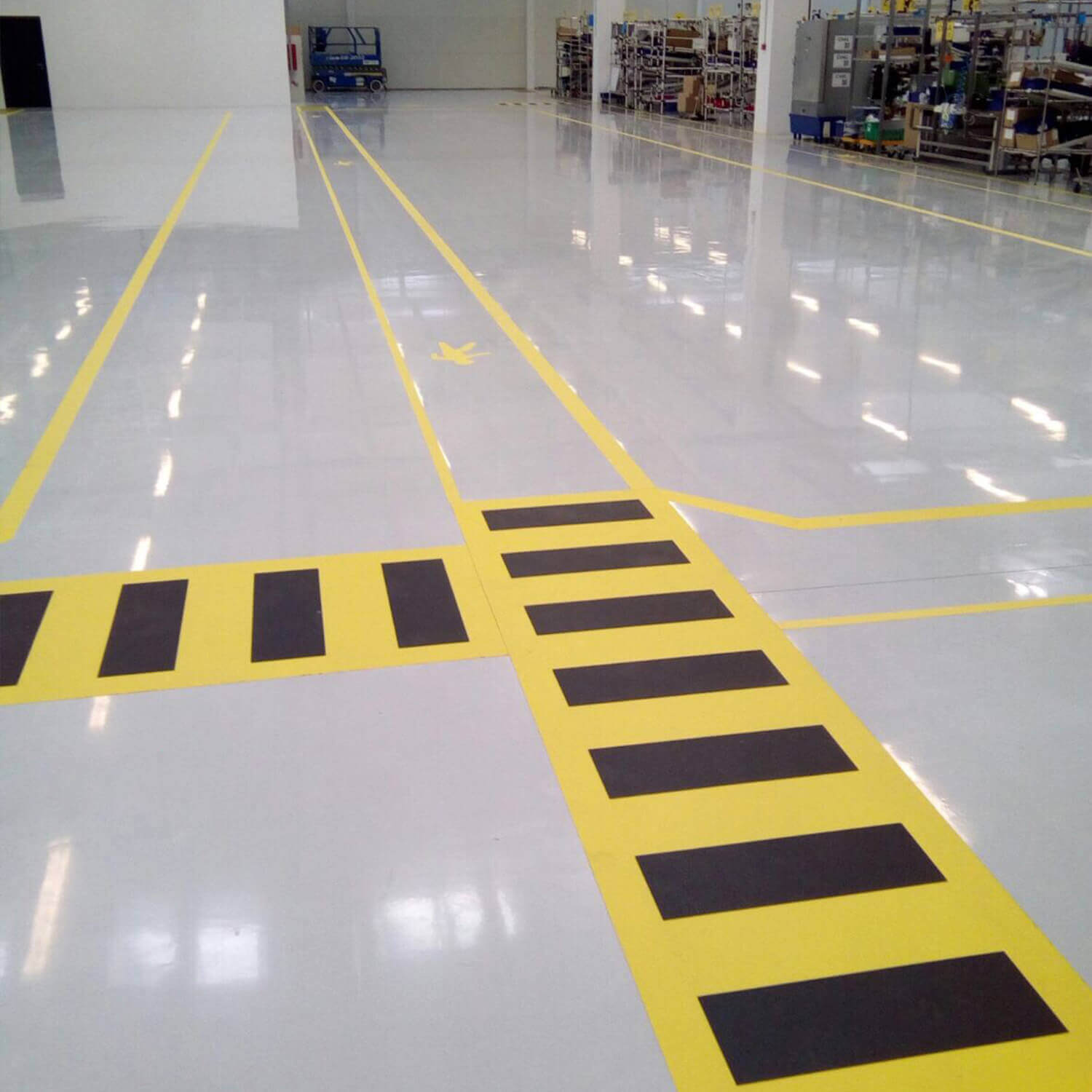

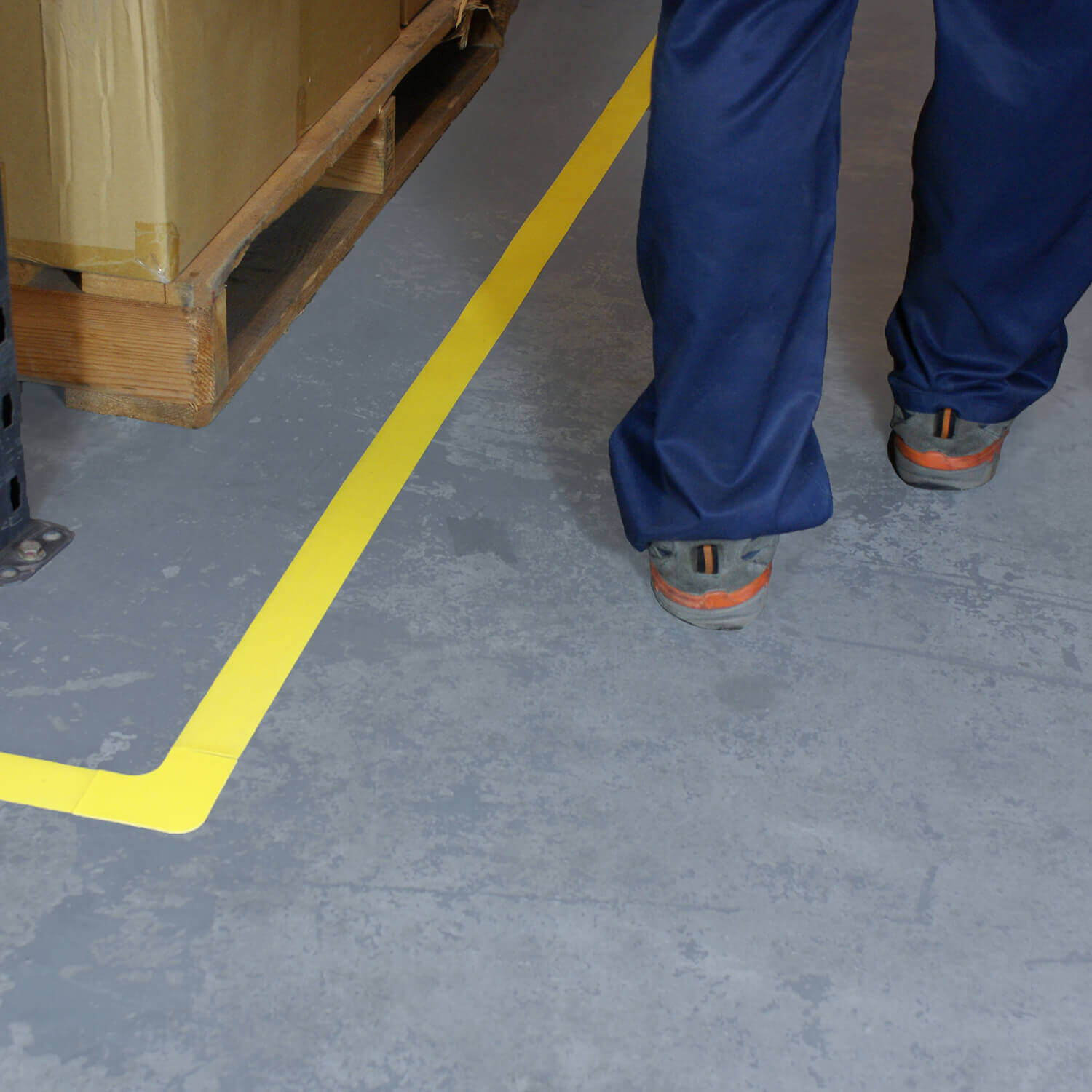

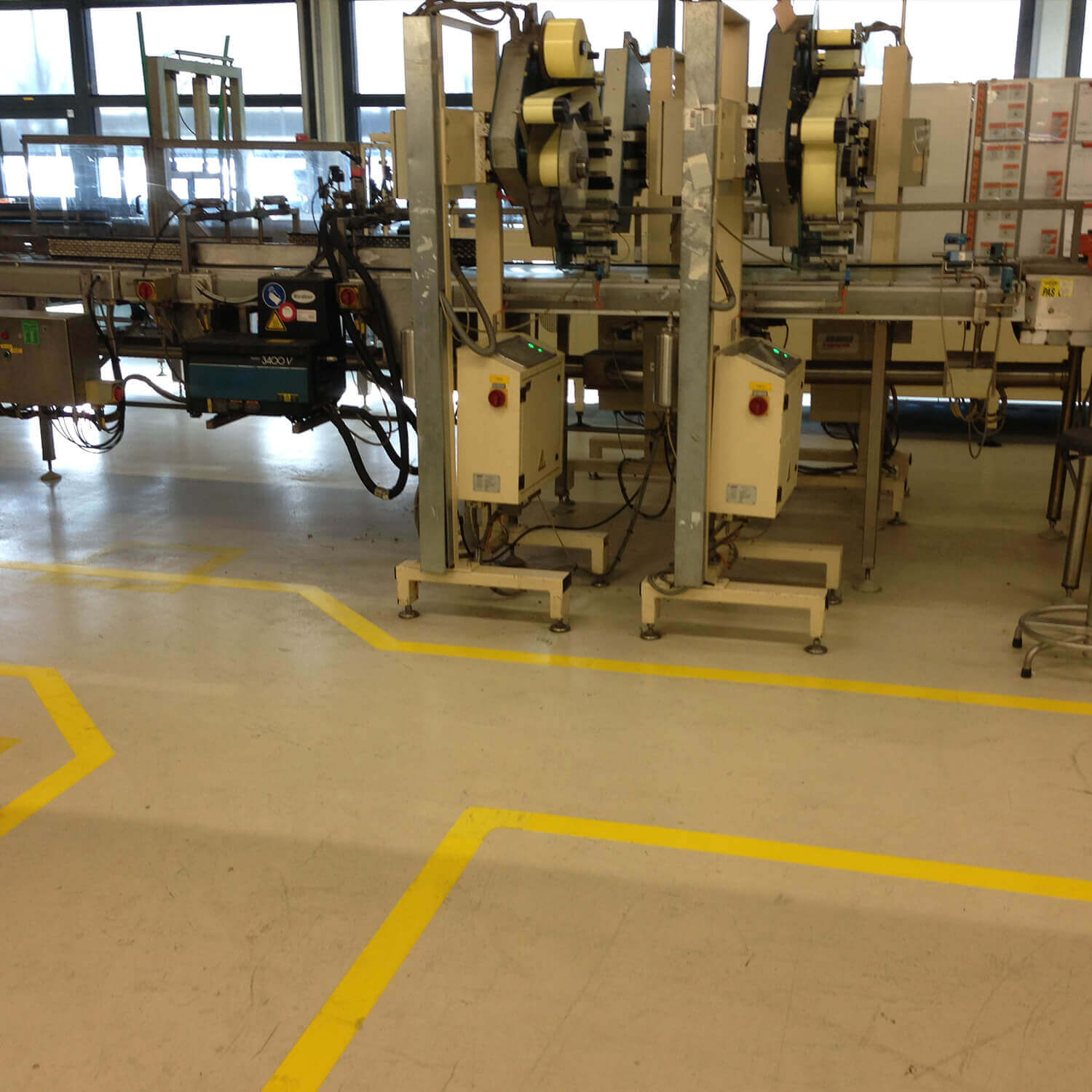

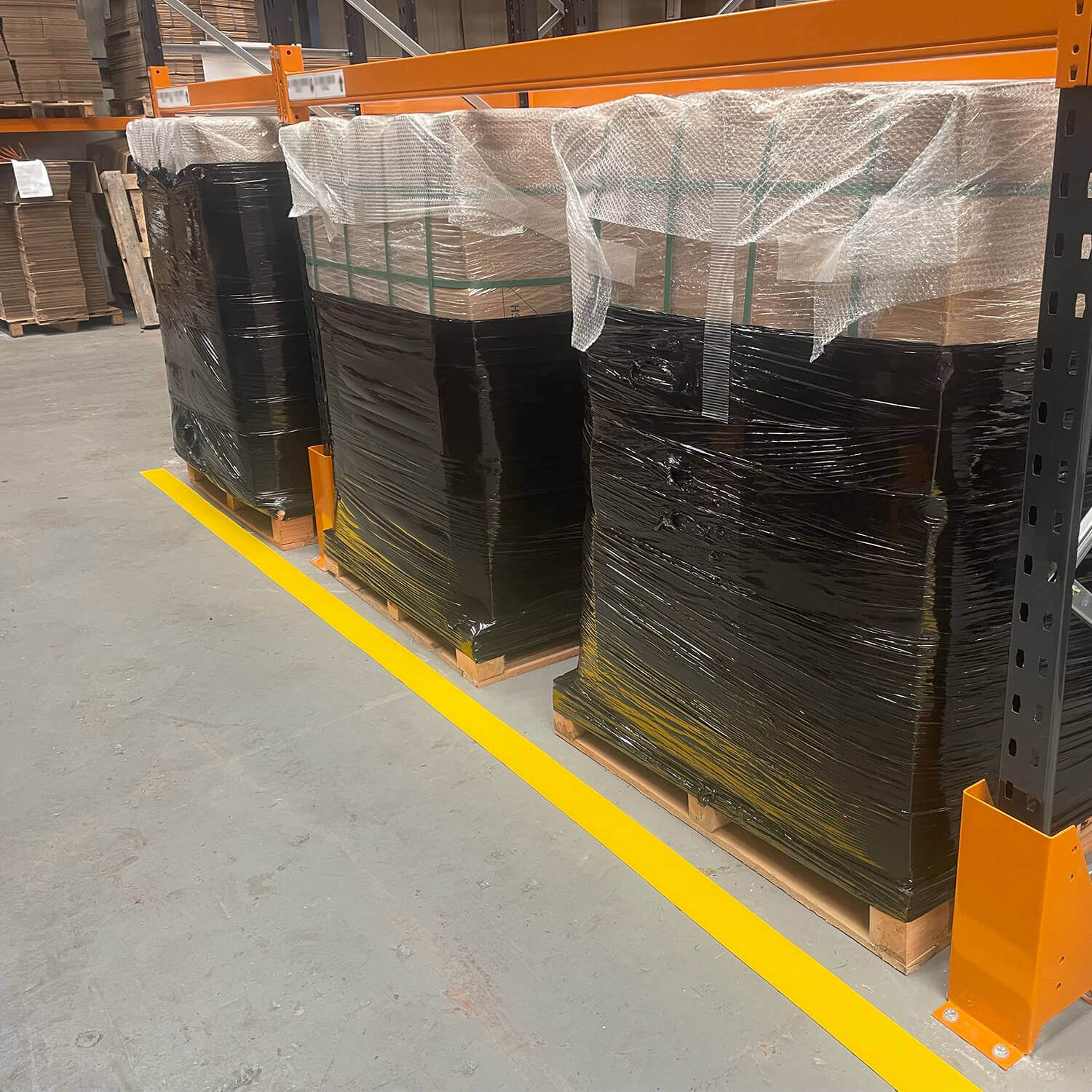

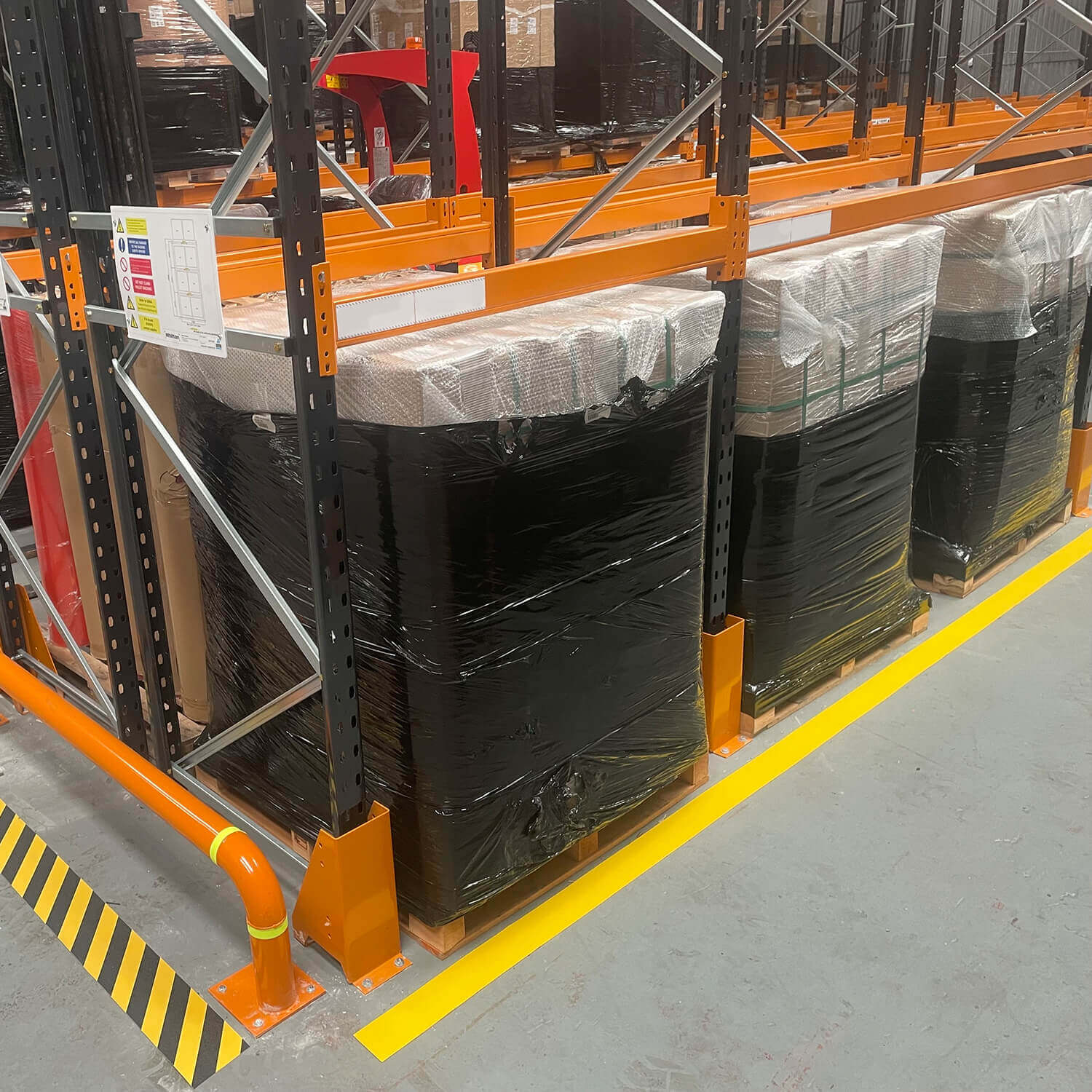

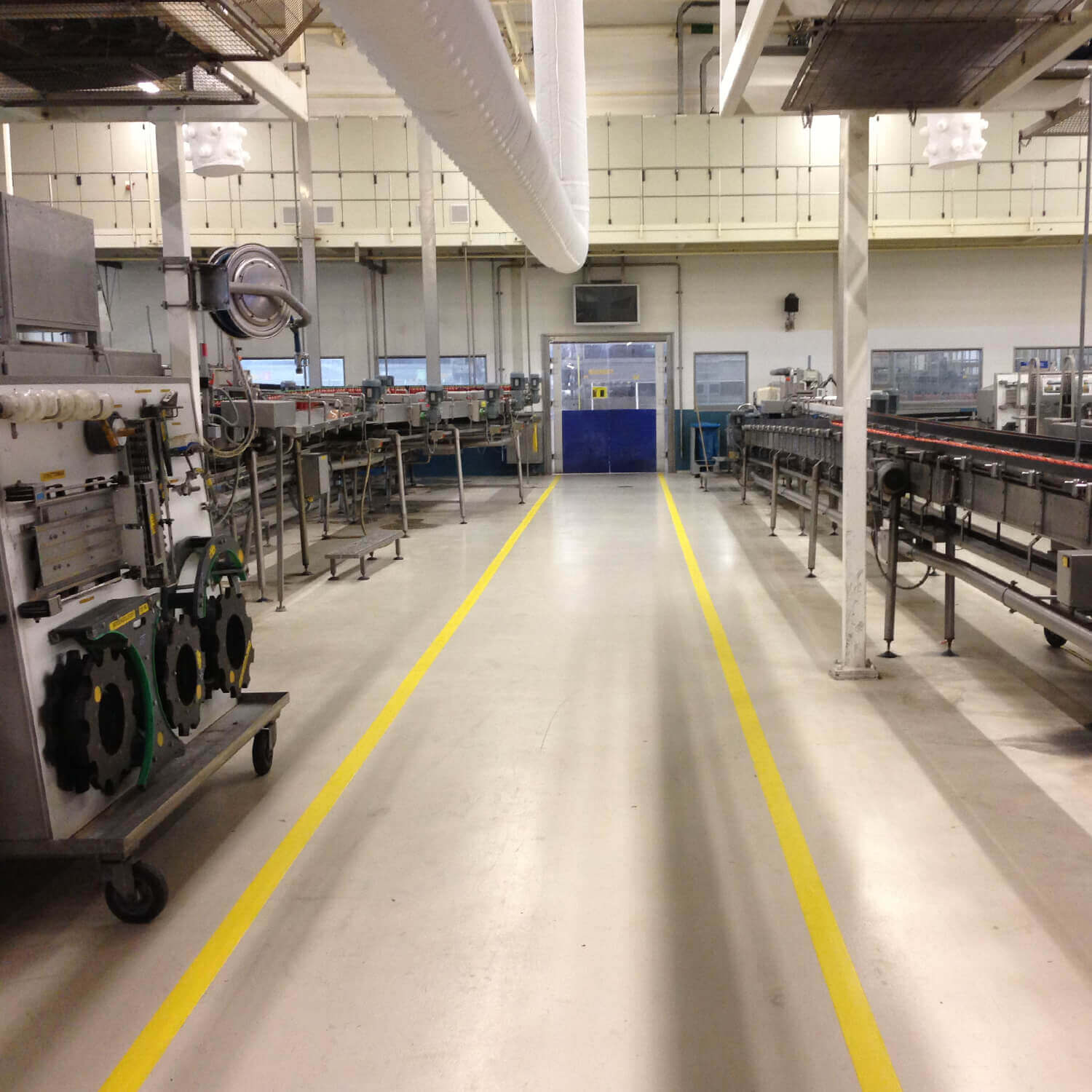

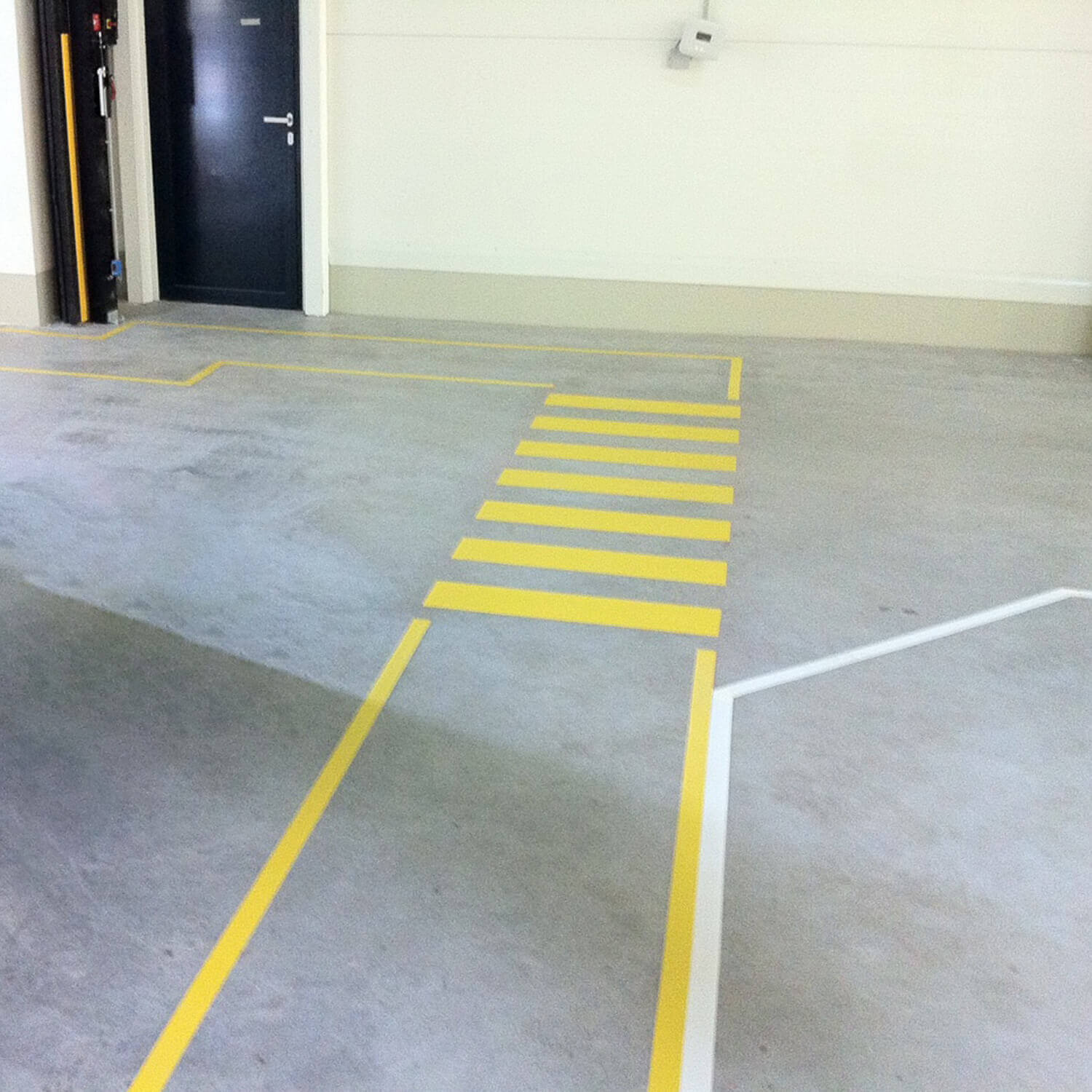

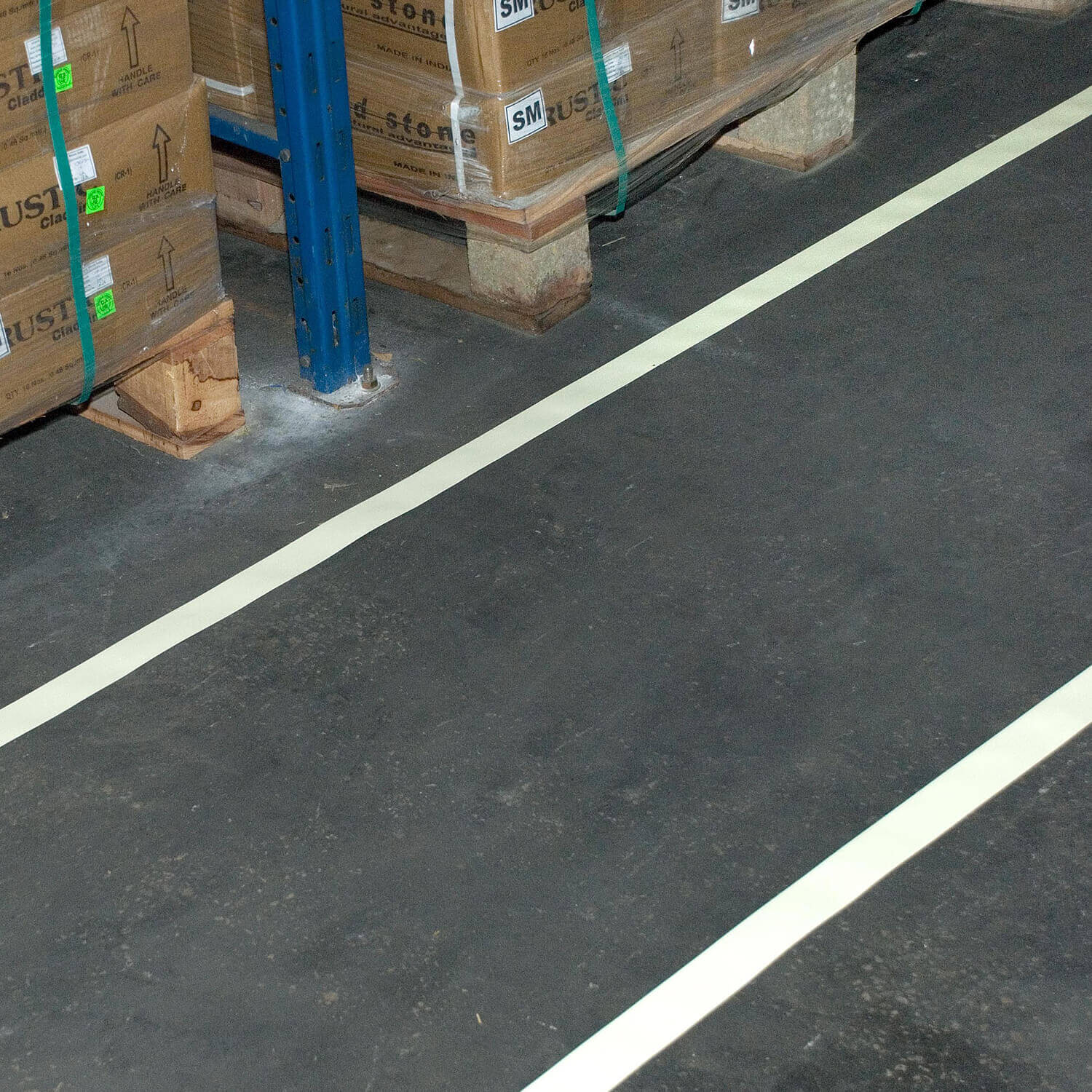

When you use PermaStripe for warehouse walkway markings, you are creating an optimised facility, allowing duties to be performed more efficiently than previous. Our PermaStripe colour range allows you to create a fully optimised, 5S floor plan.

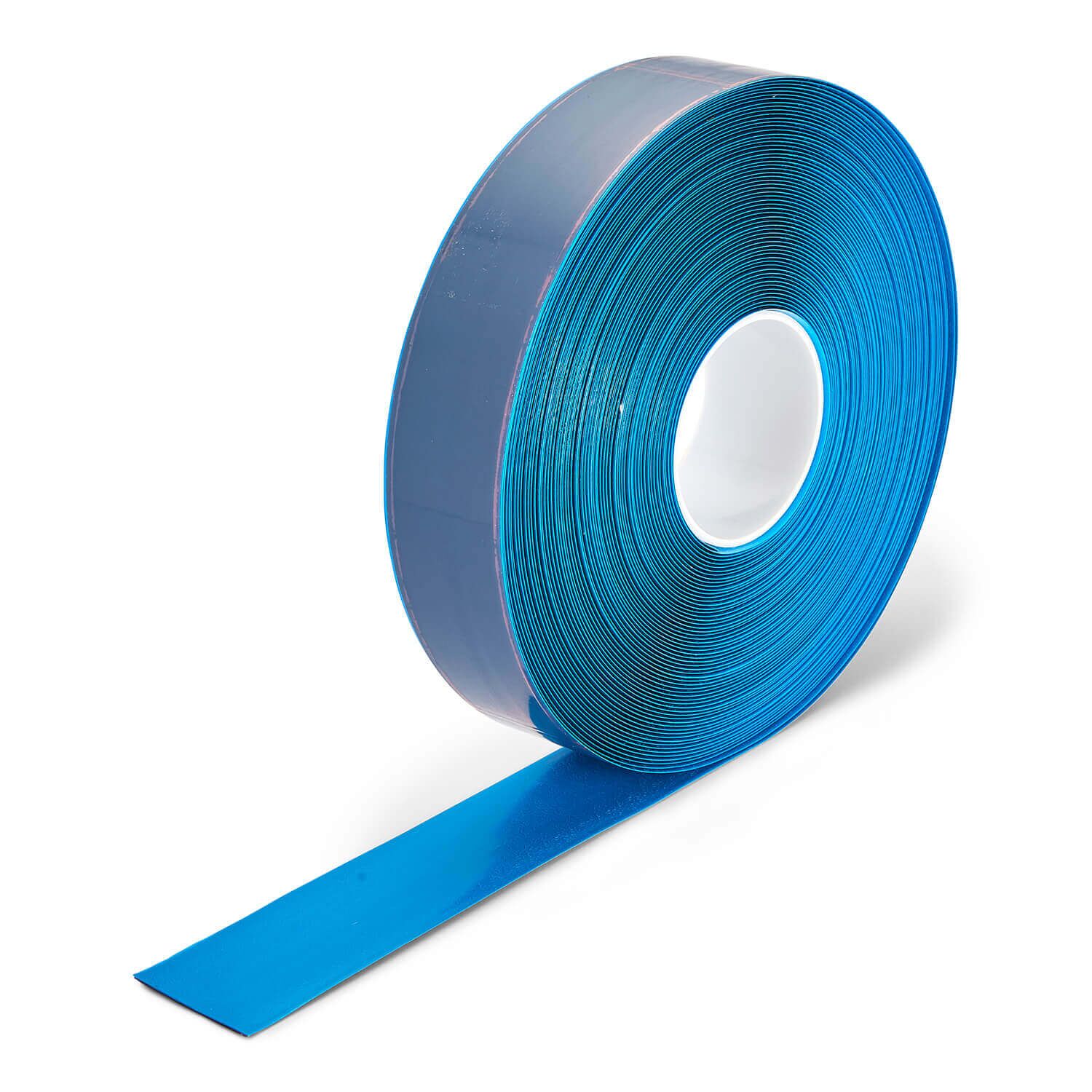

PermaStripe Sizes
PermaStripe industrial marking tape available for immediate dispatch in 50mm, 75mm and 100mm in width and 30m in length as well as various die-cut shapes in various colours.
Glow in the Dark PermaStripe is available in 75mm and 100mm rolls.
The maximum width of PermaStripe can be supplied in 1260mm.
Die-Cuts
We have various PermaStripe die-cut shapes in many sizes available for immediate dispatch. Shapes that help you to create a custom floor marking system to achieve 5S optimisation. Our fleet of in-house production machines ensures stock is always available.
Previous to the PermaStripe system, when creating custom floor tape, the neat joins were only achievable via squared-off edges by either lining the tape up, or the better, but more risky method of cutting the PermaStripe at various angles where a slip could mean an injury. We now have PermaStripe available for immediate dispatch in various shapes and colours, allowing you to create a custom floor marking tape system in the shortest time possible.
Removing PermaStripe
Removal is possible, and due to the thickness and extreme strength of PermaStripe, it will not snap when removed. This allows for easy 5S changes in the workplace, unlike resin or painted lines.
PermaStripe 3 Year Warranty
The Heskins warranty for PermaStripe line marking tape is conditionally warranted for 3 years from product purchase. Warranty claims are only limited to the replacement of PermaStripe. The warranty does not cover items being dragged, pushed or scraped across such as pallets or transit skids.
If you would like to request samples, please complete the PermaStripe sample request form.
To enquire further, or place an order, you can contact our sales team via phone or live chat. Alternatively, complete the enquiry form above and we will get back to you as soon as possible.
VIDEOS
Selling Points Here
Cutting etc.
Cutting etc.
Cutting etc.
PermaStripe Shape Markers
Please click on the images to view the Dimensions.
Shapes (Click images to view dimensions)
L
ZN0027 – 200mm x 200mm
T
ZN0028 – 300mm x 200mm
X
ZN0029 – 300mm x 300mm
Dot – 50mm Ø
ZN0035
Dot – 90mm Ø
ZN0034
Dot – 100mm Ø
ZN0023
Arrow (Left or Right)
ZN0344 – 300mm x 230mm
Arrow
ZN0020 – 100mm x 200mm
Small Arrow
ZN0009 – 100mm x 65mm
Large Arrow
ZN0012 – 300mm x 230mm
Extra Large Arrow
ZN0333 – 1000mm x 565mm
Short Arrow
ZN0050 – 90mm
Line Block
ZN0021 – 150mm x 50mm
L-Shape
ZN0024 – 100mm x 100mm
T-Shape
ZN0129 – 100mm x 150mm
X-Shape
ZN0022 – 150mm x 150mm

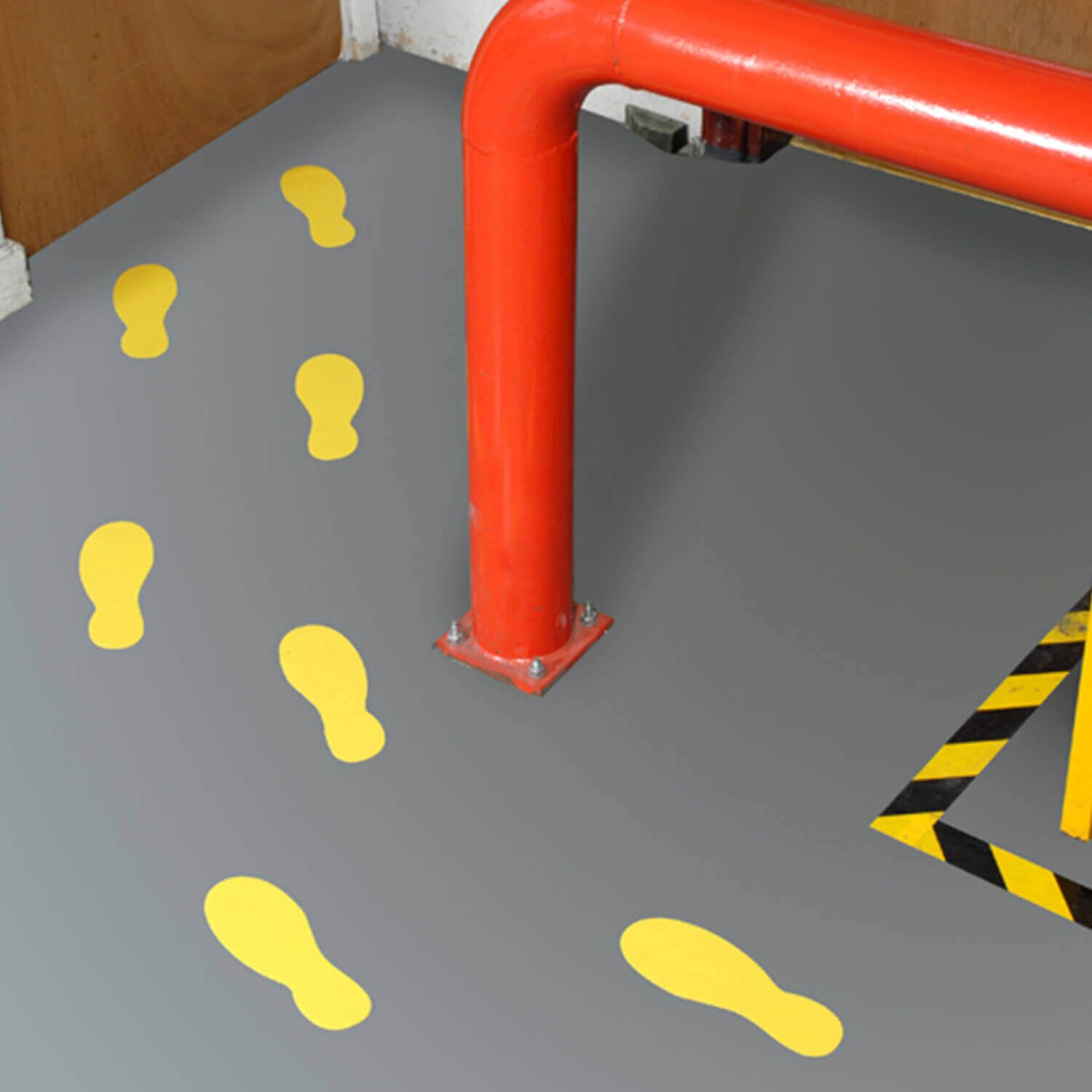

Feet (Click images to view dimensions)
Feet
ZN0201- 280mm x 105mm
Feet
ZN0010 – 57mm x 104mm
Feet
ZN0011 – 120mm x 210mm
Shoes
ZN0013 – 240mm x 90mm
Boots
ZN0016 – 300mm x 120mm
Joins (Click images to view dimensions)
90° Corner
ZN0063 – To join 50mm rolls
90° Corner
ZN0054 – To join 75mm rolls
90° Corner
ZN0202 – To join 100mm rolls
45° Corner
ZN0214 – To join 50mm rolls
45° Corner
ZN0215 – To join 75mm rolls
45° Corner
ZN0216 – To join 100mm rolls
T-Junction
ZN0055 – To join 50mm rolls
T-Junction
ZN0217 – To join 75mm rolls
T-Junction
ZN0339 – To join 100mm rolls
Bridge
ZN0061 – To join 50mm rolls
Bridge
ZN0062 – To Join 75mm Rolls
Bridge
ZN0340 – To join 100mm rolls
End Cap
ZN0157 – To join 50mm rolls
End Cap
ZN0341 – To join 75mm rolls
End Cap
ZN0342 – To join 100mm rolls
Numbers (Click images to view dimensions)
0
ZN0083– 95mm
ZN0093– 180mm
ZN0093– 300mm
1
ZN0084– 95mm
ZN0094– 180mm
ZN0103– 300mm
2
ZN0085– 95mm
ZN0095– 180mm
ZN0105– 300mm
3
ZN0083– 95mm
ZN0096– 180mm
ZN0103– 300mm
4
ZN0087– 95mm
ZN0097– 180mm
ZN0107– 300mm
5
ZN0088– 95mm
ZN0098– 180mm
ZN0108– 300mm
6
ZN0089– 95mm
ZN0099– 180mm
ZN0109– 300mm
7
ZN0090– 95mm
ZN0100– 180mm
ZN0110– 300mm
8
ZN0091– 95mm
ZN0101– 180mm
ZN0111– 300mm
9
ZN0092– 95mm
ZN0102– 180mm
ZN0112– 300mm
Letters (Click images to view dimensions)
A
ZN0229– 95mm
ZN0255– 180mm
B
ZN0230– 95mm
ZN0230– 180mm
C
ZN0231– 95mm
ZN0257– 180mm
D
ZN0232– 95mm
ZN0258– 180mm
E
ZN0233– 95mm
ZN0259– 180mm
F
ZN0234– 95mm
ZN0260– 180mm
G
ZN0235– 95mm
ZN0261 – 180mm
H
ZN0236– 95mm
ZN0262– 180mm
I
ZN0237– 95mm
ZN0263– 180mm
J
ZN0238– 95mm
ZN0264– 180mm
K
ZN0239– 95mm
ZN0265– 180mm
L
ZN0240– 95mm
ZN0266– 180mm
M
ZN0241– 95mm
ZN0267– 180mm
N
ZN0242– 95mm
ZN0268– 180mm
O
ZN0243– 95mm
ZN0269– 180mm
P
ZN0244– 95mm
ZN0270– 180mm
Q
ZN0245 – 95mm
ZN0271– 180mm
R
ZN0246– 95mm
ZN0272– 180mm
S
ZN0247– 95mm
ZN0273– 180mm
T
ZN0248– 95mm
ZN0274– 180mm
U
ZN0249– 95mm
ZN0275– 180mm
V
ZN0250– 95mm
ZN0276– 180mm
W
ZN0251– 95mm
ZN0277– 180mm
X
ZN0252– 95mm
ZN0278– 180mm
Y
ZN0253– 95mm
ZN0279– 180mm
Z
ZN0254– 95mm
ZN0280– 180mm
Colours
H6901N
Pantone / RAL
Black 6 / 9004
Black
H6901R
Pantone / RAL
199U / 3018
Red
H6901O
Pantone / RAL
021U / 2009
Orange
H6901Y
Pantone / RAL
108U / 1018
Yellow
H6901F
Pantone / RAL
803U / 1016
Fluorescent Yellow
H6901NY
Pantone / RAL
137U / 1003
Special Yellow
H6901V
Pantone / RAL
Green U / 6018
Green
H6901NV
Pantone / RAL
3288U / 6032
Special Green
H6901B
Pantone / RAL
299U / 5012
Blue
H6901BCB
Pantone / RAL
282U / 5013
Dark Blue
H6901NB
Pantone / RAL
5255U / 5005
Special Blue
H6901W
Pantone / RAL
7541 / 9003
White
H6901A
Pantone / RAL
485 & 7541 / 3001 & 9003
Red/White
H6901E
Pantone / RAL
Black 6 & 7541 / 9004 & 9003
Black/White
H6901D
Pantone / RAL
Black 6 & 1235 / 9004 & 1021
Black/Yellow
Downloads
Photo and Media Download Library
Create a free Heskins Download Suite account to access all downloadable content available for products featured on the PermaStripe website. This link takes you to the PermaStripe section of the content library.
TECH SPECS
| HEADING 1 | HEADING 2 | HEADING 3 | HEADING 4 |
|---|---|---|---|
| ROW 1 COLUMN 1 | ROW 1 COLUMN 2 | ROW 1 COLUMN 3 | ROW 1 COLUMN 4 |
PermaStripe Videos
Top 5 Installation Mistakes (and How to Avoid Them)
Tape Ancillaries to Help Apply Marking Tapes
PermaStripe VS PermaStripe Smooth
PermaStripe VS PermaRoute VS PermaLean
How to Apply Marking Tapes Correctly
How to Repair Marking Tape
Durability Test: PermaStripe VS Heavy Forklift Traffic
Before and After 5S Optimisation
How to Fix Anti-Slip Tape and Perma Family Tape
Internal PermaStripe Application
How to Repair PermaStripe Floor Marking Tape
Permastripe Pallet Markers and Floor Signage
Application of Permastripe Safety Floor Marker
Semi Ridged Pallet Markers
External PermaStripe Application
PermaStripe Letters
Why Choose PermaStripe?
5S Optimisation in The Workplace With PermaStripe

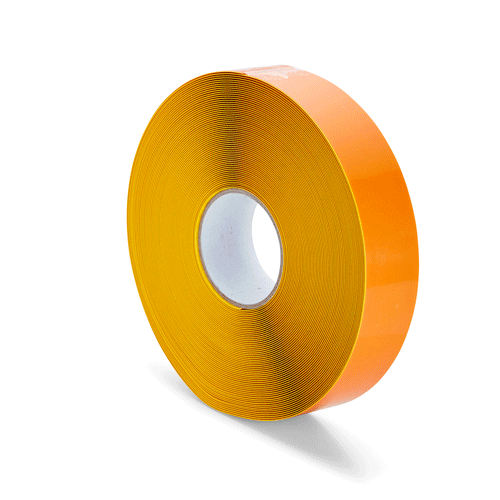

360 View
H6901 PermaStripe – FAQ
What is PermaStripe H6901 floor marking tape?
PermaStripe H6901 is a heavy-duty industrial floor marking tape designed for warehouses, factories and other busy workplaces. Its durable PVC construction, embossed surface and bevelled edges make it suitable for creating aisles, pedestrian walkways, storage bays, work zones and other safety floor markings.
Is PermaStripe suitable for warehouse and factory floors?
Yes. PermaStripe is designed for industrial warehouse and factory floor marking. It can be used to define pedestrian walkways, aisleways, production zones, storage areas and vehicle routes.
The tape is applied directly to a clean, dry floor and requires no curing or drying time, helping minimise disruption during installation.
Can PermaStripe withstand forklift traffic?
Yes. PermaStripe is designed for busy industrial floors exposed to heavy pedestrian and wheeled traffic, including forklift routes.
For the best service life, pallets, transit skids and other heavy objects should not be dragged, pushed or scraped across the tape, as this can damage the material and is excluded from the product warranty.
What makes H6901 a heavy-duty floor marking tape?
H6901 is manufactured from homogeneous PVC and is approximately 1,300 microns, or 1.3mm, thick. Because the colour runs throughout the material, surface scrapes do not immediately expose a differently coloured backing layer.
Its embossed surface, strong permanent adhesive and bevelled edges provide a durable industrial floor marking solution for demanding environments.
Will PermaStripe stick to concrete floors?
PermaStripe can be applied to properly prepared concrete floors. The surface should be sound, clean, dry and free from dust, oil, grease and loose material to allow the adhesive to make effective contact.
Very rough, porous or powdery concrete should be tested with a sample before completing a large floor marking installation.
How do you install PermaStripe floor tape?
Clean and dry the floor thoroughly before installation. Position the floor tape, peel back part of the release liner and press the adhesive side firmly onto the surface. Continue removing the liner gradually while applying consistent pressure across the full width.
PermaStripe requires no curing or drying time, so the marked area can return to use immediately after installation.
Do I need a floor tape applicator?
No. PermaStripe can be installed manually, so a floor tape applicator is not essential.
For long warehouse aisles, factory floors or large 5S floor marking projects, an applicator can make installation quicker and help produce straighter, more consistent lines.
Is floor marking tape better than floor paint?
Floor marking tape can be a better option when fast installation, minimal downtime and future layout changes are important. PermaStripe does not require the drying or curing time associated with many floor paints, allowing areas to return to use immediately.
It can also be removed when warehouse or production layouts change, making it a flexible alternative to permanent painted or resin floor markings.
What sizes and colours is PermaStripe H6901 available in?
PermaStripe H6901 is available in standard 50mm, 75mm and 100mm widths, with a roll length of 30 metres. Wider material can also be produced for specialist applications.
Colours include black, red, orange, yellow, fluorescent yellow, green, blue and white, alongside striped hazard options for industrial safety floor markings.
Can PermaStripe be used for 5S floor marking and colour coding?
Yes. PermaStripe can support 5S floor marking and lean manufacturing by identifying pedestrian routes, vehicle lanes, storage positions, work cells, equipment zones and operational areas.
Different floor tape colours can be assigned to specific functions as part of a documented visual management system. The chosen colour coding should reflect the workplace risk assessment and be applied consistently throughout the facility.
Can PermaStripe be removed when a layout changes?
Yes. Although PermaStripe is designed as a durable industrial floor tape, it can be removed when warehouse, factory or 5S layouts need to change.
Its substantial construction helps the tape remain intact during removal rather than repeatedly breaking, making it easier to update workplace markings when operational requirements change.
How long does PermaStripe floor marking tape last?
The service life of PermaStripe depends on floor preparation, traffic levels, cleaning methods and how the marked area is used.
PermaStripe H6901 is supplied with a conditional three-year warranty from the date of purchase. The warranty covers replacement of the product but excludes damage caused by pallets, transit skids or other objects being dragged, pushed or scraped across the tape.
